What Is An HDMI Type-C Female Connector?

Introduction to HDMI Type-C Female CONNECTORs

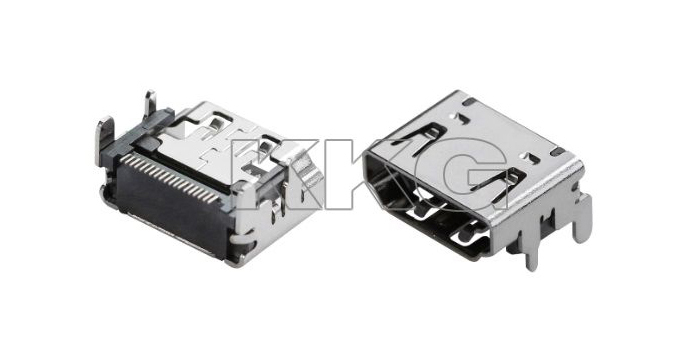

The HDMI Type-C female connector, more commonly known as the HDMI Mini Connector, represents a specialized interface standard designed for compact electronic devices where space constraints preclude the use of full-sized HDMI Type-A connectors. This 19-pin interface maintains full compatibility with the HDMI 1.3 specification and subsequent versions, supporting high-definition video resolutions up to 4K at 30Hz and digital audio signals through a significantly reduced form factor. The connector measures approximately 10.42mm × 7.2mm × 2.42mm, representing a 60% reduction in physical size compared to standard Type-A connectors while preserving identical electrical characteristics and signal integrity. This miniaturization enables manufacturers to integrate high-definition multimedia capabilities into portable devices without compromising performance or requiring excessive internal space allocation.

Technical Specifications and Performance Characteristics

Electrical Characteristics and Signal Integrity

The HDMI Type-C female connector maintains rigorous electrical specifications to ensure signal integrity across high-speed digital interfaces. The connector supports Transition Minimized Differential Signaling (TMDS) across three separate data channels, each capable of operating at speeds up to 3.4 Gbps in HDMI 1.4 implementations. The differential impedance is strictly maintained at 100Ω ±15% to minimize signal reflection and ensure clean transitions. The connector's design incorporates shielding effectiveness of >40dB up to 1GHz, effectively suppressing electromagnetic interference in densely packed electronic devices. Contact resistance is specified at <30mΩ initially and <50mΩ after 10,000 mating cycles, ensuring long-term reliability in frequently connected applications.

Mechanical Durability and Environmental Specifications

Manufactured to withstand the mechanical demands of portable electronics, the HDMI Type-C female connector typically features a phosphor bronze contact system with gold plating (0.2μm minimum thickness) to ensure corrosion resistance and optimal electrical conductivity. The insulator is constructed from high-temperature LCP (Liquid Crystal Polymer) material rated for operations up to 105°C. The mechanical endurance rating specifies a minimum of 5,000 insertion-extraction cycles without significant degradation in performance. The connector shell commonly utilizes stainless steel or nickel-plated brass to provide structural integrity and effective EMI shielding while maintaining the compact form factor essential for space-constrained applications.

Primary Applications and Implementation Scenarios

Portable Recording Equipment

HDMI Type-C female connectors are extensively implemented in professional and prosumer portable video recording devices, including digital camcorders, action cameras, and DSLR/mirrorless cameras. These applications benefit from the connector's ability to provide uncompressed video output for external monitoring and recording while maintaining the compact dimensions essential for portable form factors. In broadcast-quality camcorders, the connector enables real-time 4K video feed to external recorders or monitoring equipment, with manufacturers typically implementing the connector in protected recessed areas to prevent damage during field use. The interface supports simultaneous transmission of embedded audio, timecode, and auxiliary data, making it indispensable for professional video production workflows.

Mobile Computing and Tablet Devices

Before the widespread adoption of USB-C with Alternate Mode, numerous tablet computers and ultra-portable laptops incorporated HDMI Type-C female connectors as their primary video output solution. These implementations allowed users to connect their mobile devices to external displays, projectors, or television sets for presentations, media consumption, or extended desktop configurations. The connector's minimal depth requirement (typically <3mm from PCB surface) made it particularly suitable for thin-profile devices where internal space allocation was critically limited. Many industrial tablets and ruggedized computing devices continue to utilize this interface due to its mechanical robustness compared to newer connector types.

Automotive Infotainment Systems

High-end automotive infotainment systems frequently incorporate HDMI Type-C female connectors to enable passenger entertainment systems and rear-seat displays. The connector's vibration resistance specifications (tested to 10-2000Hz, 1.5mm amplitude) make it suitable for automotive environments where mechanical stability is crucial. These implementations typically utilize the interface for transmitting entertainment content from mobile devices to in-vehicle displays, with the compact form factor allowing discreet integration into console designs. The operating temperature range (-25°C to +85°C) ensures reliable performance across extreme automotive environmental conditions.

Medical Imaging Equipment

Portable medical imaging devices, including ultrasound systems, patient monitors, and mobile X-ray viewing stations, employ HDMI Type-C female connectors for their diagnostic display outputs. The digital interface ensures artifact-free transmission of critical medical imagery, while the compact dimensions facilitate integration into equipment with stringent space constraints. Medical implementations often feature additional strain relief and retention mechanisms to prevent accidental disconnection during clinical procedures. The interface's support for high color depth (up to 48-bit) ensures accurate color reproduction essential for diagnostic interpretation.

Comprehensive Maintenance and Care Procedures

Important Safety Notice: Always disconnect all power sources before cleaning or inspecting HDMI connectors to prevent electrical damage or personal injury.

Routine Cleaning Procedures

Regular maintenance of HDMI Type-C female connectors requires careful attention to prevent damage to the delicate contact array. Begin by using compressed air with a minimum pressure of 30 PSI to remove loose particulate matter, directing the nozzle at a 30-45 degree angle to the connector face. For more thorough cleaning, utilize lint-free swabs minimally moistened with isopropyl alcohol (99% purity recommended), gently wiping the contact area without applying excessive pressure that could bend pins. Never insert metallic cleaning tools into the connector cavity, as this risks shorting contacts or causing mechanical deformation. Allow complete evaporation of any cleaning solvents before applying power to the device.

Physical Inspection Protocols

Periodically inspect the HDMI Type-C female connector for signs of physical damage or wear. Using appropriate magnification (5-10x), examine the 19 contact pins for uniform alignment, ensuring none are bent, recessed, or protruding abnormally. Check the connector shell for cracks, deformation, or corrosion that could compromise shielding effectiveness. Verify that the mounting points on the PCB show no signs of stress cracking or solder joint failure, particularly important for portable devices subject to mechanical shock. Document any observed abnormalities and address them before continued use to prevent further degradation.

Environmental Protection Measures

When devices with HDMI Type-C female connectors are deployed in challenging environments, implement protective measures to ensure long-term reliability. In high-humidity conditions (>80% RH), consider applying a thin coating of corrosion inhibitor specifically formulated for electronic connectors (dielectric strength >500 V/mil). For applications subject to vibration or frequent mating cycles, utilize strain relief accessories or retention clips to minimize mechanical stress on the solder connections. In dusty environments, employ protective caps when the connector is not in use, ensuring they form a complete seal around the connector interface.

Professional Tip: For industrial applications with frequent connection cycles, establish a preventive maintenance schedule that includes contact resistance measurements every 5,000 mating cycles to identify potential issues before they cause system failures.

Storage and Handling Guidelines

Proper storage of devices with exposed HDMI Type-C female connectors prevents degradation during periods of non-use. Store devices in anti-static packaging with silica gel desiccant packets to maintain humidity below 60% RH. Avoid stacking heavy objects on devices in storage, as this can deform the connector shell or damage internal components. When transporting devices, ensure the HDMI port is either connected to a cable or protected with an appropriate cover to prevent physical damage or contamination. Implement electrostatic discharge (ESD) precautions during handling, using grounded workstations and wrist straps when installing or servicing equipment.

Compatibility Considerations and Implementation Notes

Interfacing with Standard HDMI Devices

While the HDMI Type-C female connector is electrically identical to standard Type-A connectors, physical interconnection requires appropriate Adapters or special cables. These adapter solutions must maintain the strict impedance control and shielding specifications of the HDMI standard to prevent signal degradation. High-quality adapters typically incorporate molded strain relief and gold-plated contacts to ensure reliable performance. When implementing adapter solutions, limit cable lengths to 5 meters for 1080p signals and 3 meters for 4K content to maintain signal integrity without requiring signal boosters or equalization circuits.

PCB Design Considerations

Implementing HDMI Type-C female connectors in product designs requires careful attention to PCB layout guidelines. Maintain 100Ω differential impedance for the TMDS pairs by using controlled impedance stackups with appropriate trace width and spacing. Provide adequate ground return paths adjacent to signal pairs and incorporate multiple grounding vias near the connector footprint. Allocate sufficient clearance (minimum 2mm) between the connector and other components to facilitate mating and prevent mechanical interference. Include ESD protection devices on all signal lines, selecting components with capacitance <0.5pF to avoid signal degradation at high frequencies.

Signal Integrity Validation

After implementing HDMI Type-C female connectors in a design, validate signal integrity through appropriate testing methodologies. Utilize high-bandwidth oscilloscopes with differential probes to measure eye diagram characteristics, ensuring compliance with HDMI specification masks. Verify that jitter remains within acceptable limits (<0.3TUI for random jitter, <0.25TUI for deterministic jitter) across the supported resolution range. Conduct interoperability testing with multiple display devices to identify potential compatibility issues. For production implementations, implement sampling tests to verify connector solder joint integrity through mechanical stress testing and X-ray inspection.
