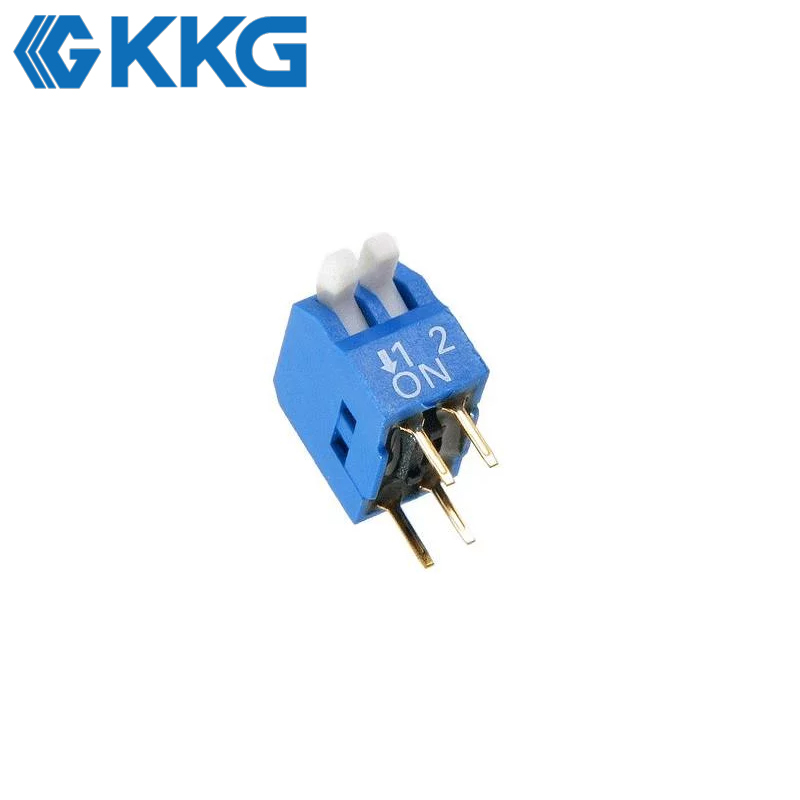

Through-Hole Slide Type DIP Switch - 2.54mm Pitch

Arduino Uno DIP Switch's Product Introduction

The KKG DIP-SL-254 Series is a fundamental and highly reliable dip switch, engineered for setting board-level configurations. The through-hole design provides a strong, durable connection to the PCB, making it ideal for both prototyping and high-vibration environments. Each electronic dip switch offers a simple ON/OFF function for its corresponding circuit, perfect for address setting, mode selection, or hardware configuration. The popular dip switch 8 pins version, for example, allows for 256 unique binary settings, providing extensive flexibility for complex projects.

Allen-Bradley Point I/O DIP Switch's Product Operating Principle

Through-Hole Mounting: The switch's pins are inserted through holes in a PCB and soldered on the reverse side, providing a very strong mechanical and electrical bond.
Circuit Control: Moving an individual slider to the "ON" position closes a single SPST circuit, creating an electrical path between the two corresponding pins.
Secure Latching: Each actuator has a firm detent mechanism that holds it securely in either the ON or OFF position, preventing accidental changes from vibration or handling.

LiftMaster 893MAX DIP Switch's Product Functions

Hardware Address Setting: Allows a unique address to be assigned to a device on a shared data bus, common in industrial control and legacy computer systems.
Mode Selection: Provides a simple, reliable hardware method for setting a device's operational mode or enabling specific features that are not meant to be changed by the end-user.
Configuration Control: Offers a physical way to set parameters like termination, gain, or other logic settings without needing access to software.
Prototyping and DIY: The breadboard-friendly 2.54mm pitch makes it a staple for hobbyists and engineers for developing and testing new circuits.

Garage Door Openers: A classic example where these switches are used to set the security code on a remote control, such as the LiftMaster 893MAX, to match the receiver unit.

Industrial Controllers: Used on PLC expansion modules like the Allen-Bradley Point I/O series to set the network address and configuration.

DIY Electronics: Commonly used in Arduino projects, for example, on a custom shield for a Arduino Uno to act as a multi-channel input for selecting different program modes.
