Right Angle PCB Mount Telephone Socket

Panasonic KX-TGE633 RJ11 Socket's Product Introduction

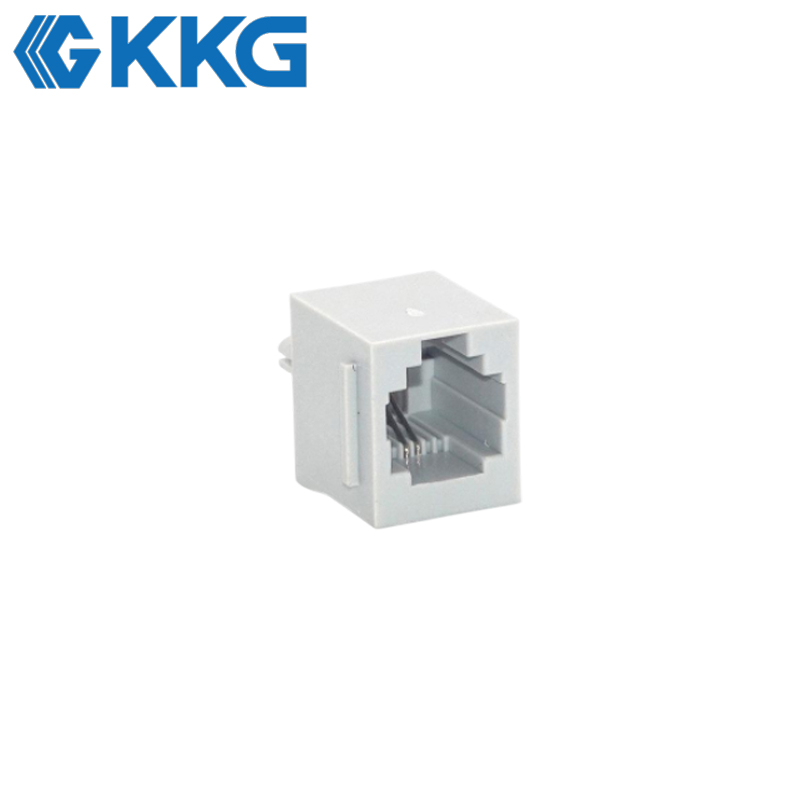

KKG Electronics presents the RJ11-9001, a reliable rj 11 modular jack engineered for robust telecommunication interfaces. This component provides a standardized entry point for landline telephones and ADSL equipment. While users often compare rj11 vs rj45 connectors, this smaller form factor is specifically optimized for voice and low-speed data rather than Ethernet networking. The socket features a reinforced housing with snap-in plastic pegs for secure mechanical retention on the circuit board. It utilizes a standard rj11 pinout configuration (6P4C), ensuring compatibility with 2-wire or 4-wire telephone cabling systems. As a durable rj11 port, it utilizes precision-formed phosphor bronze contacts to minimize static and signal loss. It is the ideal solution for manufacturers of fax machines, POS terminals, and modems requiring a cost-effective and durable connection solution.

Netgear DM200 RJ11 Socket's Product Operating Principle

Plug Engagement: The plastic tab on the male telephone plug snaps into the internal ridge of the socket housing, locking the cable in place to prevent accidental disconnection during calls.
Spring Contact Wiping: As the plug enters, the internal wire contacts flex and wipe against the plug's metal blades, removing surface oxidation and establishing a clean electrical connection.
Signal Conduction: The internal lead frame routes the analog voice signals or DSL data from the cable pins down through the PCB solder tails to the device's processing circuit.

Verifone VX 520 RJ11 Socket's Product Functions

Telephony Interface: Acts as the physical bridge connecting the device to the Public Switched Telephone Network (PSTN) for voice communication or data transmission.
Cable Retention: Provides a mechanically secure anchor point that withstands the tension of coiled handset cords or wall cables to protect the internal solder joints.
Standardized Connectivity: Ensures seamless interoperability with standard RJ11 telephone cords found globally, adhering to FCC Part 68 dimensions.
Line Separation: Physically separates the transmit and receive wire pairs (Tip and Ring) to maintain proper polarity and signal integrity within the device.

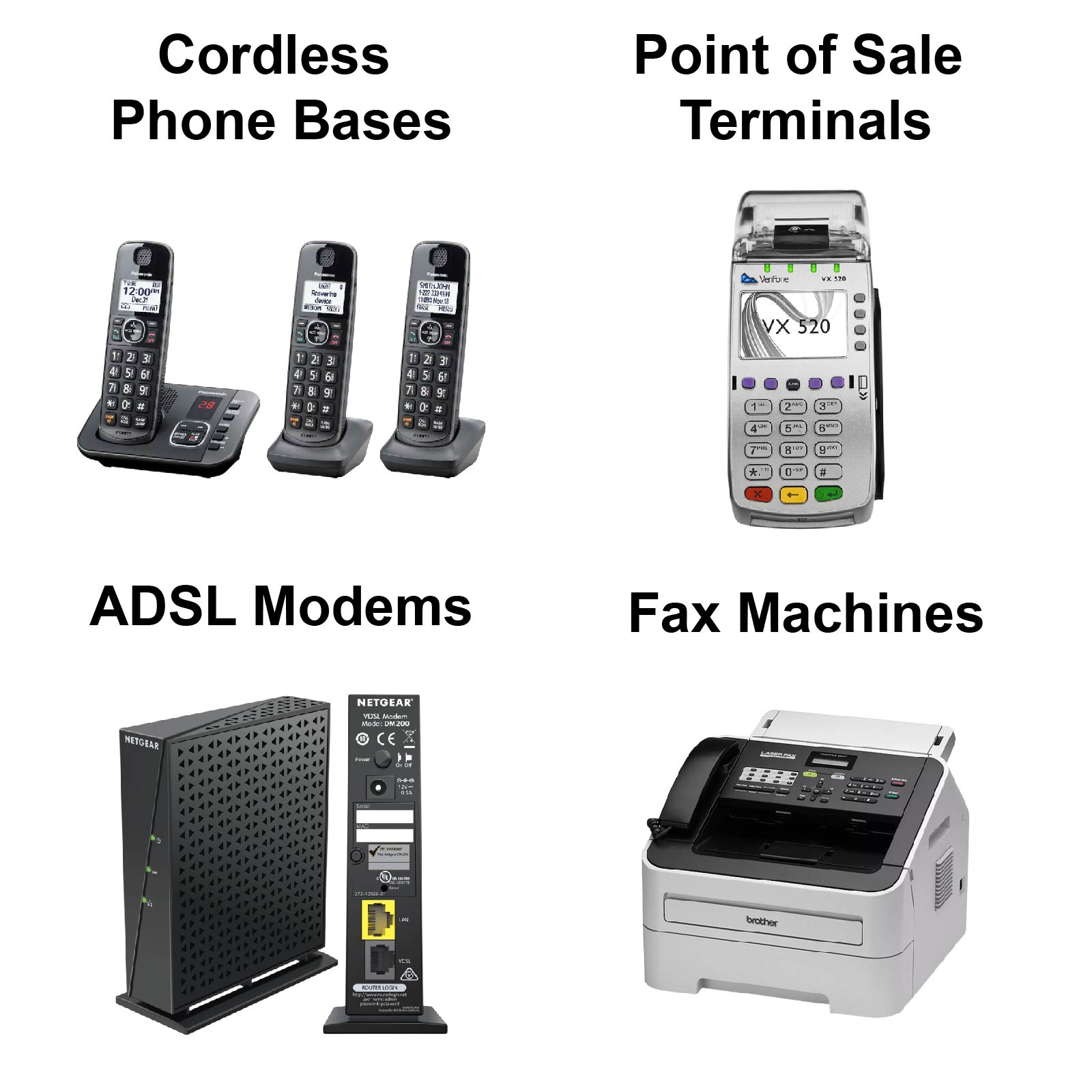

Cordless Phone Bases: Integrated into the base station of the Panasonic KX-TGE633 to connect the unit to the landline network.

Point of Sale Terminals: Integrated into the rear panel of the Verifone VX 520 to provide dial-up connectivity for transaction processing.

ADSL Modems: Used on the input port of the Netgear DM200 DSL Modem to receive broadband internet signals from the wall jack.

Fax Machines: Located on the I/O board of the Brother FAX-2840 to facilitate document transmission over telephone lines.
