PCB Mount Network Interface Socket

Sony Bravia X90K RJ45 Socket's Product Introduction

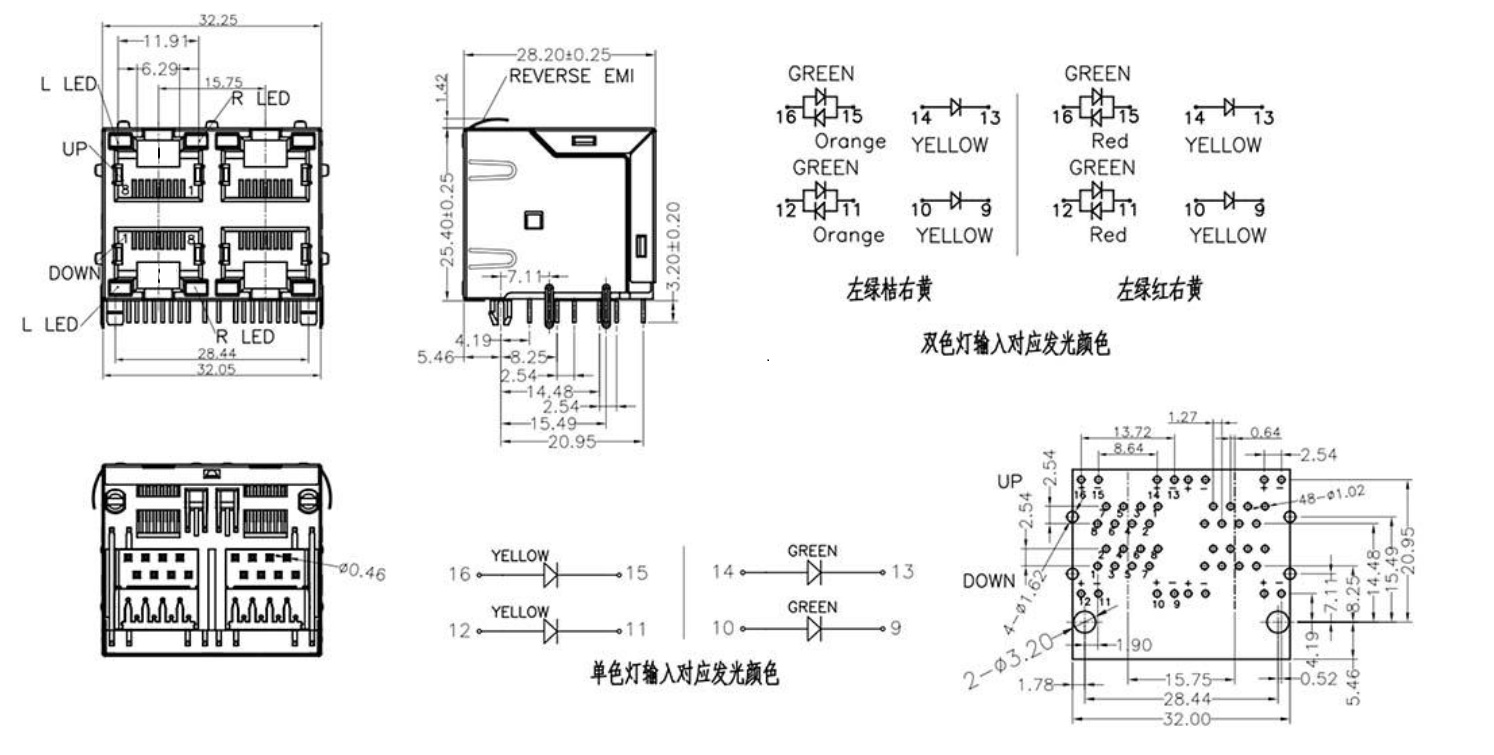

KKG Electronics presents the RJ45-8804, a high-performance rj45 jack engineered for robust network communications. This component provides a standardized interface for connecting local area networks (LANs) to hardware devices. Unlike a limited rj45 connector 4 pin telephony interface, this fully loaded 8-contact socket supports high-speed data transmission protocols suitable for modern broadband applications. The unit features a reinforced housing that ensures mechanical stability during frequent cable insertions. As a reliable rj45 socket, it utilizes gold-plated phosphor bronze contacts to minimize signal resistance and prevent oxidation over time. Designed for easy through-hole mounting, this rj45 connector integrates seamlessly into routers, switches, and motherboards, providing the durable physical connection necessary for stable internet access and data transfer.

ASUS Prime Z590-A RJ45 Socket's Product Operating Principle

Mechanical Mating: The plug's plastic tab locks into the jack's internal notch, securing the cable against accidental removal while aligning the pins.
Spring Contact Engagement: Flexible wire contacts inside the jack are depressed by the inserted plug blades, creating a high-pressure electrical path for data signals.
Pin Mapping: The 8 internal pins connect individual twisted pair wires from the cable to the PCB traces, facilitating differential signaling for noise rejection.

TP-Link Archer AX55 RJ45 Socket's Product Functions

Data Interface: Serves as the physical entry and exit point for Ethernet packets, connecting the device's internal network controller to the wider local area network.
Signal Integrity: Maintains precise impedance matching and contact pressure to ensure low attenuation and minimal crosstalk during high-speed data transfer.
Cable Retention: Provides a secure locking mechanism that holds the network cable in place to prevent connection dropouts caused by vibration or movement.
Universal Compatibility: Adheres to TIA/EIA-568 standards to ensure seamless interoperability with standard Ethernet cables and networking gear globally.

Wireless Routers: Integrated into the rear LAN ports of the TP-Link Archer AX55 to provide wired gigabit connections for desktop computers.

Desktop Motherboards: Located on the rear I/O panel of the ASUS Prime Z590-A to enable high-speed internet connectivity.

Smart Televisions: Used on the input board of the Sony Bravia X90K to ensure stable streaming bandwidth for 4K video content.

KKG Electronics uses temperature-resistant materials and high-temperature testing equipment.

The product's appearance does not change when tested at 260°C for 5 minutes!

We ensure high production efficiency and ship your order within 7 days after payment.

Q1:Are you a factory or trade company?

A:We are factory with more than 15 years of experience specialized in producing switches, sockets, connetors, DC Jacks, etc.

Q2: What is the turnaround time for rapid prototyping of modified designs?

A: Prototypes are delivered in 7-10 working days post-design approval. Submit CAD files and specifications to activate priority engineering review.

Q3: How do you ensure long-term product availability for legacy systems?

A: We guarantee 15-year lifecycle support with EOL (End-of-Life) notifications 24 months in advance and bridge manufacturing options.

Q4: Can you accept small order? Like 1000 pcs or 2000 pcs?
A: Sure, but we suggest you buy more, because it really can save your time and freight charge in the near future.

Q5:What kind of files are required for quotation?
A: For PCB quotation, please provide the Gerber data / files and indication of related technical requirements as well as any special.
