Right Angle PCB Network Interface Socket

Sony PlayStation 5 RJ45 Socket's Product Introduction

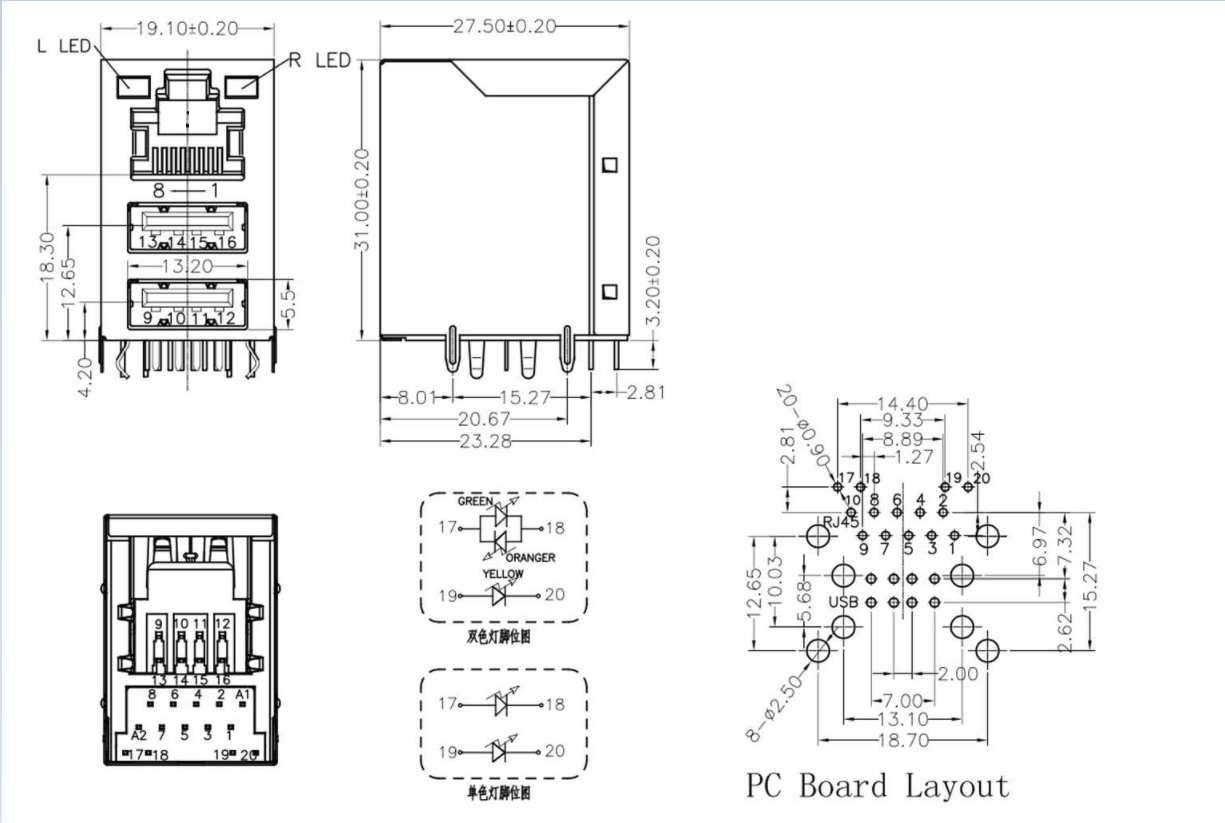

KKG Electronics presents the RJ45-8202, a high-quality rj45 socket engineered to provide a stable physical interface for local area networks. This component allows for the secure insertion of a standard rj45 head (plug), ensuring consistent contact pressure for high-speed data transfer. While similar in shape to a telephone jack, this unit offers full 8-wire connectivity, far exceeding the capabilities of a basic rj45 connector 4 pin implementation often confused with RJ11. The housing is reinforced to withstand the mechanical stress of daily cable changes. Designed for seamless integration into printed circuit boards, this rj45 jack utilizes precision-formed phosphor bronze contacts to minimize signal loss. It is the ideal solution for manufacturers of routers, switches, and consumer electronics requiring a durable and standardized LAN port.

Hikvision DS-2CD2143G0 Dome Camera RJ45 Socket's Product Operating Principle

Mechanical Locking: The flexible plastic tab on the inserted cable plug snaps into the internal notch of the socket housing to prevent accidental disconnection.
Spring Contact Wiping: As the plug enters, the internal wire contacts wipe against the plug blades to remove oxidation and establish a low-resistance electrical path.
Differential Pairing: The internal pin layout routes twisted-pair signals from the cable directly to the PCB traces maintaining impedance to reduce crosstalk.

Netgear GS308 RJ45 Socket's Product Functions

Physical Interface: Acts as the female receptacle that accepts the network cable allowing the device to physically connect to the wired network infrastructure.
Signal Transfer: Transmits differential data signals between the external cabling and the internal network interface controller (NIC) of the device.
Standard Compliance: Adheres to TIA/EIA-568 wiring standards to ensure universal compatibility with Ethernet cables and networking equipment worldwide.
Port Protection: The rigid housing aligns the pins and protects the internal PCB connections from mechanical strain caused by cable movement.

VoIP Telephones: Integrated into the rear data port of the Polycom VVX 450 Business IP Phone to provide network access and Power over Ethernet.

Network Switches: Used in the port array of the Netgear GS308 8-Port Gigabit Switch to facilitate high-speed switching between connected devices.

Security Cameras: Located on the pigtail or body of the Hikvision DS-2CD2143G0 Dome Camera to transmit video data to the NVR.

Gaming Consoles: Integrated into the rear I/O panel of the Sony PlayStation 5 to provide a stable low-latency wired internet connection.
