Right Angle PCB Mount Network Socket with LEDs

Supermicro X11SPI-TF RJ45 Socket's Product Introduction

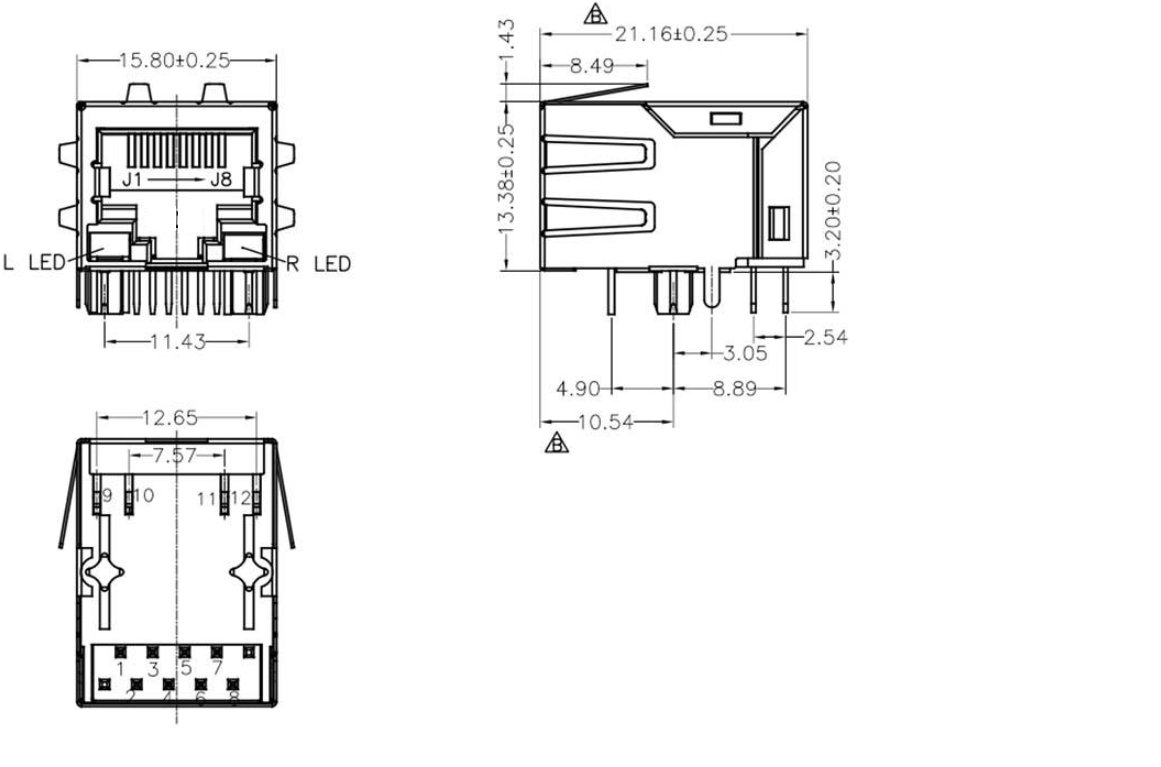

KKG Electronics presents the RJ45-99TA, a professional-grade rj45 socket designed for demanding network applications requiring both signal integrity and status visualization. Unlike standard unshielded connectors, this unit features a robust metal shell that grounds the port, effectively blocking electromagnetic interference in industrial environments. It is engineered to accept a standard rj45 head, securing it with a satisfying click to ensure continuous contact. Ideally suited for any high-density rj45 connector board layout, it includes integrated LEDs (Left/Right) to indicate connection status and data activity without requiring separate light pipes on the panel. While some legacy telephone systems use a narrower rj45 connector 4 pin interface, this 8-pin component offers full Ethernet capability, supporting Cat5e and Cat6 speeds. Its reinforced internal structure and gold-plated contacts ensure a long service life, making it the preferred choice for networking hubs, servers, and high-end consumer electronics.

Netgear GS308E RJ45 Socket's Product Operating Principle

EMI Shielding: The external metal shell surrounds the plastic housing and connects to the PCB ground plane draining away electromagnetic interference to protect the signal.
Visual Status Indication: Integrated LEDs are powered by independent pins to light up and provide immediate visual feedback on network link status and activity.
Differential Signal Contact: Internal phosphor bronze contacts flex to wipe against the plug blades establishing a low-resistance connection for Ethernet differential pairs.

Advantech UNO-2484G RJ45 Socket's Product Functions

Signal Integrity Protection: Prevents data packet loss in electrically noisy environments by enclosing the connection point in a conductive Faraday cage.
Network Diagnostics: Allows network administrators to quickly verify connectivity and data transmission speeds via the built-in LED indicators.
Secure Physical Interface: Provides a mechanically stable entry point for the LAN cable anchoring it to the circuit board to withstand pulling tension.
Standardized Connectivity: Ensures seamless mating with standard networking patch cords adhering to TIA/EIA-568 standards for pinout and dimensions.

Network Switches: Integrated into the front panel of the Netgear GS308E Gigabit Switch to provide shielded ports with activity lights for traffic monitoring.

Industrial PCs: Used on the rear I/O of the Advantech UNO-2484G Embedded Computer to ensure reliable communication in factory automation environments.

IP Surveillance Cameras: Located on the pigtail or housing of the Hikvision DS-2CD2087G2 Bullet Camera to allow for secure, shielded PoE connections.

Server Motherboards: Integrated into the rear panel of the Supermicro X11SPI-TF Server Board to handle high-bandwidth data uplink with EMI protection.
