2-Port Stacked Right Angle Network Interface Socket

Synology DiskStation DS923+ RJ45 Socket's Product Introduction

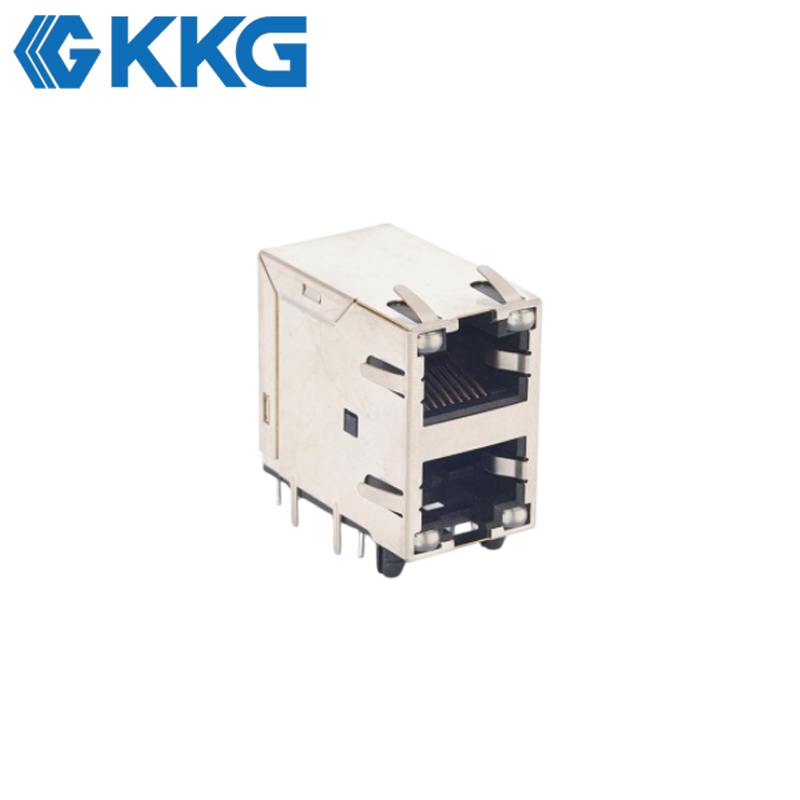

KKG Electronics presents the RJ45-8804 2X1, a professional-grade rj45 connector socket designed to maximize port density on networking equipment. This "stacked" configuration places two ports vertically, effectively doubling the connectivity without increasing the horizontal footprint on the rj45 connector board. Each port is fully shielded with a metal chassis ("Reverse EMI") to protect against electromagnetic interference in noisy industrial environments. The unit features integrated LED indicators (Green/Yellow options) to provide immediate visual feedback on link status. It is engineered to securely latch onto a standard rj45 head, ensuring a stable physical connection. While legacy telephone systems utilize a narrower rj45 connector 4 pin interface, this 8-pin dual-port component offers full Gigabit Ethernet capability. Its reinforced structure and gold-plated contacts make it the preferred choice for routers, hubs, and high-performance computing hardware.

Dell PowerEdge T40 RJ45 Socket's Product Operating Principle

Vertical Port Stacking: The housing is molded to accommodate two distinct jack cavities one above the other allowing two separate Ethernet cables to be connected simultaneously while occupying the PCB space of a single port.
EMI Shielding Path: The external metal shell wraps around the entire plastic housing and grounds to the PCB through dedicated tabs draining electrostatic discharge and noise away from the high-speed data signals.
Link Status Indication: Independent LED circuits built into the housing face illuminate when powered by the device logic board providing real-time feedback on network activity or connection speed for both the top and bottom ports.

Cisco Catalyst 9200 RJ45 Socket's Product Functions

Port Density Optimization: Doubles the available network connections on the rear panel of a device without requiring a longer circuit board making it ideal for compact switches and routers.
Signal Interference Protection: Utilizes a "Reverse EMI" shielding design to act as a Faraday cage protecting the sensitive differential signal pairs from external electrical noise and crosstalk.
Network Diagnostics: Enables technicians to visually verify which ports are active and transmitting data via the integrated light indicators without needing to access software interfaces.
Mechanical Stability: Provides a rigid anchor point for two heavy network cables simultaneously utilizing multiple through-hole solder legs to prevent stress damage to the PCB traces.

Ethernet Switches: Integrated into the port array of the Cisco Catalyst 9200 Series to provide high-density shielded connectivity for enterprise networks.

Network Attached Storage: Used on the rear I/O panel of the Synology DiskStation DS923+ to allow for link aggregation and failover support.

Industrial Controllers: Located on the communication module of the Rockwell Automation Allen-Bradley PLC to handle dual-network redundancy in factory floors.

Media Servers: Integrated into the motherboard of the Dell PowerEdge T40 Tower Server to ensure reliable high-bandwidth data uplink.
