2x2 Right Angle Network Interface Socket with LEDs

HPE ProLiant BL460c RJ45 Socket's Product Introduction

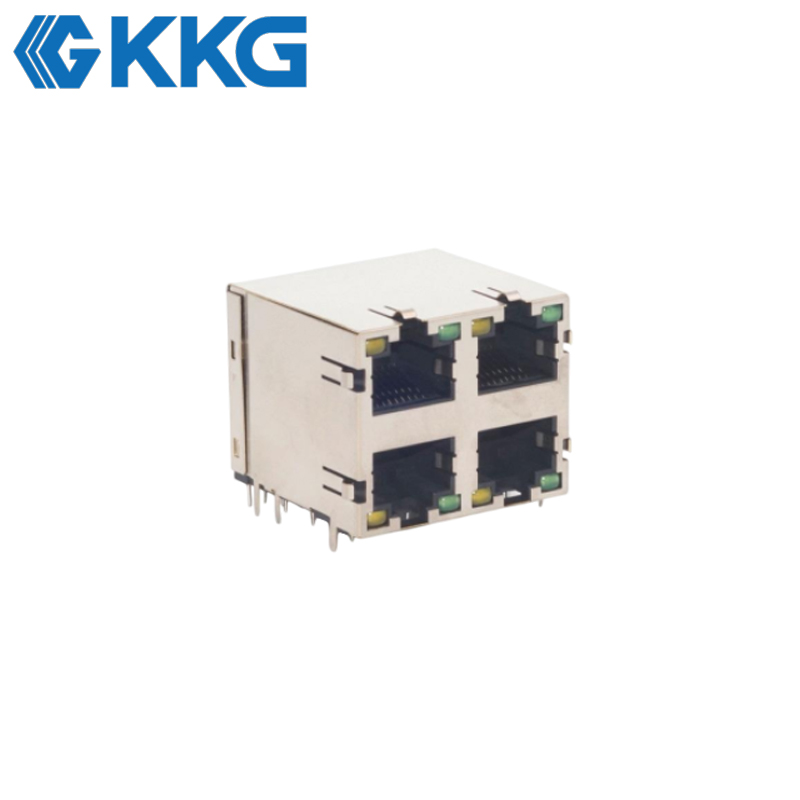

KKG Electronics presents the RJ-8802 2X2, a professional-grade rj45 connector socket designed to deliver maximum connectivity in minimal space. This "Matrix" configuration stacks four ports (2-up, 2-across) into a single shielded housing, making it the perfect rj45 switch socket solution for enterprise networking equipment. The unit is encased in a metal shell with grounding tabs to provide superior EMI protection, ensuring data integrity in electrically noisy environments. Each port is equipped with independent LED indicators to display link activity and speed status. The connector is engineered to securely latch onto any standard rj45 head, providing a tactile click for a confident physical connection. Designed for heavy-duty applications, this component integrates seamlessly into any high-density rj45 connector board, offering a robust mechanical anchor and reliable electrical performance for Gigabit Ethernet transmission.

Hikvision DS-7732NI-I4 RJ45 Socket's Product Operating Principle

Matrix Integration: The molded housing combines four individual jack cavities into a unified 2x2 block allowing four separate network cables to connect simultaneously while sharing a common structural footprint.
EMI Grounding: The external metal shield surrounds the entire block and connects to the PCB ground plane through multiple tabs draining electromagnetic interference away from the sensitive data pairs.
Independent Signaling: Despite the shared housing each of the four ports maintains fully isolated pinouts and LED circuits ensuring no electrical crosstalk between the connected devices.

Fortinet FortiGate 60F RJ45 Socket's Product Functions

Port Density Maximization: Quadruples the available network connections on a device panel compared to single jacks making it essential for high-port-count switches and routers.
Visual Status Monitoring: Integrated LEDs for every port provide immediate visual feedback on network activity and link speed allowing technicians to diagnose connection issues at a glance.
Signal Protection: The "Positive EMI" shielding acts as a Faraday cage preventing external radio frequency interference from corrupting high-speed gigabit data packets.
Mechanical Rigidity: The multi-leg through-hole design provides exceptional mechanical strength anchoring the connector firmly to the PCB against the combined weight of four attached cables.

Enterprise Switches: Integrated into the high-density front panel of the Cisco Catalyst 9300 Series to provide 48-port gigabit connectivity options.

Network Security Appliances: Used on the rear I/O of the Fortinet FortiGate 60F Firewall to manage multiple WAN and LAN connections in a compact form factor.

Surveillance NVRs: Located on the rear panel of the Hikvision DS-7732NI-I4 Network Video Recorder to connect multiple IP cameras directly to the recorder.

Blade Servers: Integrated into the communication card of the HPE ProLiant BL460c Gen10 Server Blade to ensure redundant high-speed data uplinks.
