1x2 Side Entry Network Modular Jack

Arduino Ethernet Shield 2 RJ45 Socket's Product Introduction

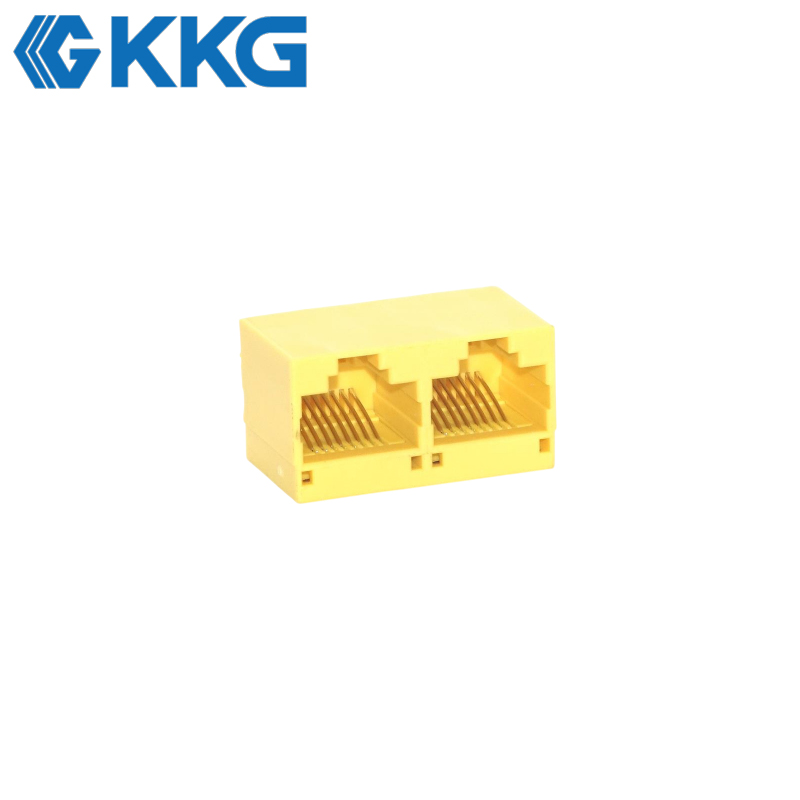

KKG Electronics presents the RJ45-5224 1X2, a high-efficiency rj45 connector designed to double connectivity without significantly increasing manufacturing complexity. This "1x2" ganged module integrates two standard Ethernet ports into a single unshielded housing, making it an ideal choice for consumer routers and network switches. The socket is engineered to firmly grip a standard rj45 head, providing a secure click-lock mechanism for stable operation. While primarily a PCB component, its rigid structure allows it to serve effectively as a rj45 connector socket panel mount interface when aligned with device enclosure cutouts. Ideally suited for any high-density rj45 connector board, this component reduces placement time during assembly compared to installing two separate jacks. It supports standard Cat5e performance, ensuring reliable local area network connections for multiple devices simultaneously.

Infomir MAG524 RJ45 Socket's Product Operating Principle

Ganged Port Integration: The housing molds two jack cavities side-by-side allowing two independent Ethernet cables to connect to the same PCB footprint efficiently.
Spring Contact Engagement: Internal phosphor bronze contacts wipe against the plug blades upon insertion removing oxidation and establishing a low-resistance electrical path.
Mechanical Retention: Flexible locking tabs on the inserted plugs engage with ridges inside the housing to secure the cables against accidental disconnection.

TP-Link Archer C6 RJ45 Socket's Product Functions

Port Expansion: Instantly provides two network interfaces in a single component reducing board space usage and assembly time for multi-port devices.
Data Interface: Connects external LAN cabling to the device's internal magnetic modules and network controllers for bidirectional data transfer.
Signal Isolation: Maintains physical separation between the two ports' signal pins to prevent crosstalk and interference between adjacent network connections.
Structural Support: The multi-pin through-hole design anchors the connector firmly to the circuit board protecting solder joints from mechanical stress.

Wi-Fi Routers: Integrated into the LAN switch block of the TP-Link Archer C6 to provide wired internet access to multiple home devices.

VoIP Gateways: Used on the rear panel of the Grandstream HT802 Analog Telephone Adapter to connect to the network and pass-through data.

Set-Top Boxes: Integrated into the I/O board of the Infomir MAG524 to provide reliable streaming connectivity and service diagnostics.

Development Boards: Used on the expansion shield of the Arduino Ethernet Shield 2 to enable network communication capabilities for IoT projects.

KKG Electronics uses temperature-resistant materials and high-temperature testing equipment.

The product's appearance does not change when tested at 260°C for 5 minutes!

We ensure high production efficiency and ship your order within 7 days after payment.
