Right Angle Shielded Network Interface Socket

HP LaserJet Enterprise M406 RJ45 Socket's Product Introduction

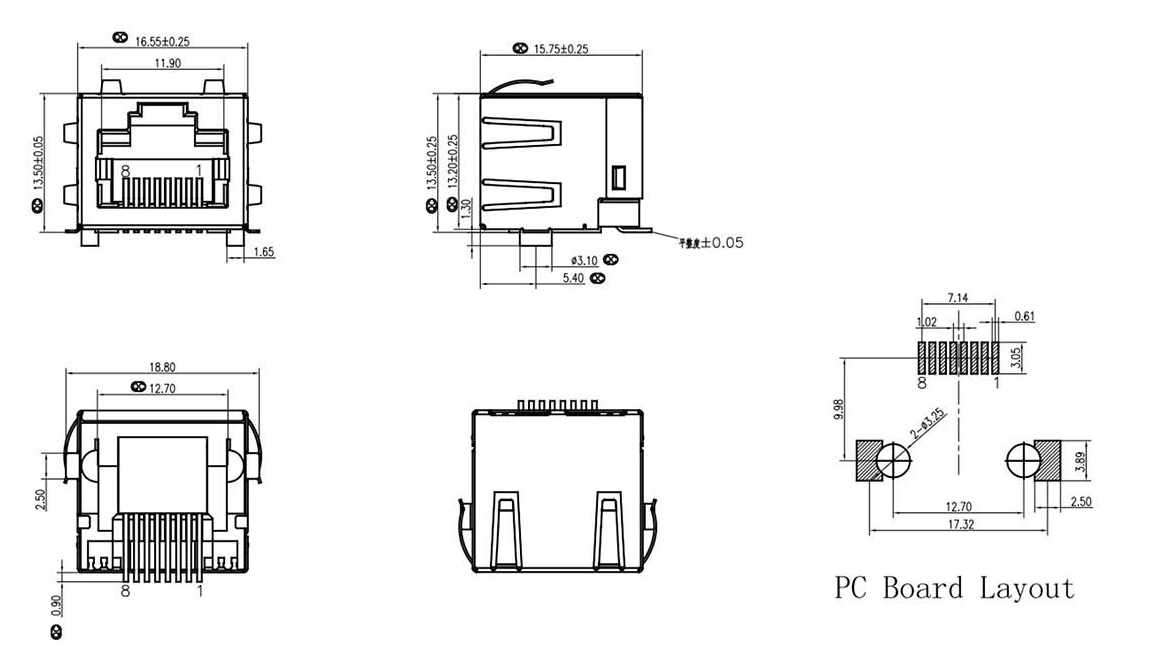

KKG Electronics presents the RJ45-9805 1X1, a robust rj45 connector engineered for high-performance data environments. Unlike standard plastic jacks, this component features a comprehensive metal shield that encloses the housing, providing essential protection against electromagnetic interference (EMI). It is designed to be the primary rj45 switch socket for networking equipment, capable of handling Gigabit Ethernet speeds without signal degradation. The unit mounts securely to any rj45 connector board, utilizing grounding tabs to drain static and noise directly to the PCB ground plane. With precision-formed gold-plated contacts, this rj45 jack ensures a low-resistance connection that withstands thousands of mating cycles. It is the ideal solution for industrial computers, servers, and outdoor networking gear where signal integrity is paramount.

MikroTik Cloud Smart Switch RJ45 Socket's Product Operating Principle

EMI Shielding: The external metal chassis surrounds the connector acting as a Faraday cage to intercept and drain electromagnetic interference before it can corrupt the data signals.
Grounding Connection: Dedicated metal tabs on the sides of the shield solder directly into the PCB ground plane establishing a low-impedance path for static discharge.
Differential Contact: Internal phosphor bronze contacts engage the inserted plug blades to transmit differential data signals while maintaining impedance matching for noise rejection.

Microsoft Xbox Series X RJ45 Socket's Product Functions

Signal Integrity Preservation: Ensures data packets are transmitted without error by shielding the connection point from external electrical noise common in industrial environments.
Physical Interfacing: Provides a mechanically rugged entry point for standard Ethernet cables anchoring the connection securely to the device motherboard.
Static Discharge Protection: Protects sensitive internal networking chips (PHY) by grounding high-voltage static shocks that might be introduced through the cable.
Standardized Compatibility: Adheres to global TIA/EIA dimensions ensuring a perfect fit for any standard Cat5e or Cat6 network patch cord.

Industrial PCs: Integrated into the rear I/O of the Advantech UNO-2000 Series to provide noise-immune LAN connectivity in factory floors.

Network Switches: Used on the ports of the MikroTik Cloud Smart Switch to ensure reliable gigabit throughput.

Gaming Consoles: Integrated into the rear panel of the Microsoft Xbox Series X to provide a stable low-latency wired internet connection.

Enterprise Printers: Located on the communication board of the HP LaserJet Enterprise M406 to handle large print jobs over the network.

KKG Electronics uses temperature-resistant materials and high-temperature testing equipment.

The product's appearance does not change when tested at 260°C for 5 minutes!

We ensure high production efficiency and ship your order within 7 days after payment.

Q1: What's the lead time of bulk order?
A: The lead time is normally 10-14 days. We will inform you lead time before order, and will confirm to you again after received payment.

Q2. What is the payment term?
A: For small quantity order, pls remit payment by PayPal. For bulk order, pls remit payment by T/T.

Q3. Can you open mold for teminal order or uncommon mold?
A: OK, we need time to discuss in details, such us the cost for open mold, and need to know the forecast, end product and lifespan.

Q4:What is your PCB/ PCBA service?
A: Our PCB / PCBA service is about Medical industry, Automobile, Energy, Measurements, Consumer Electronics.

Q5:What kind of files are required for quotation?
A: For PCB quotation, please provide the Gerber data / files and indication of related technical requirements as well as any special.
