6-Pin Modular Telecommunication Socket

AutomationDirect CLICK RJ45 Socket's Product Introduction

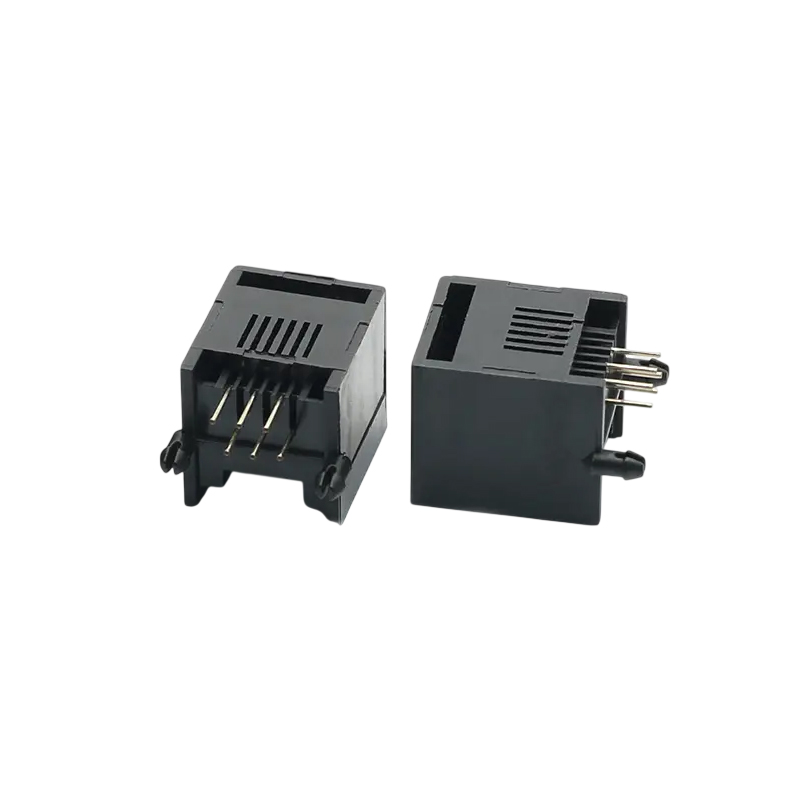

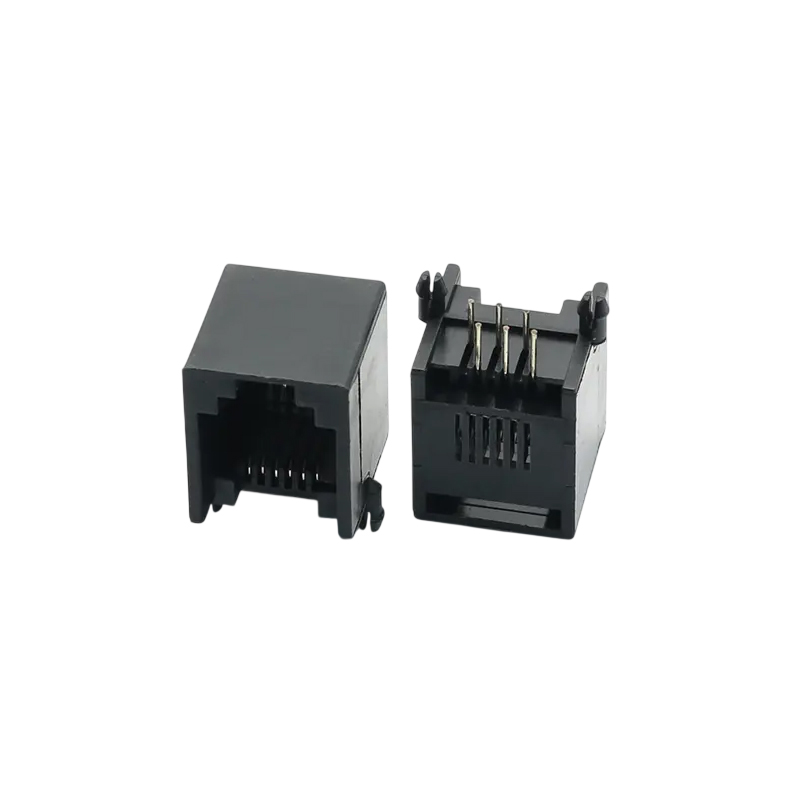

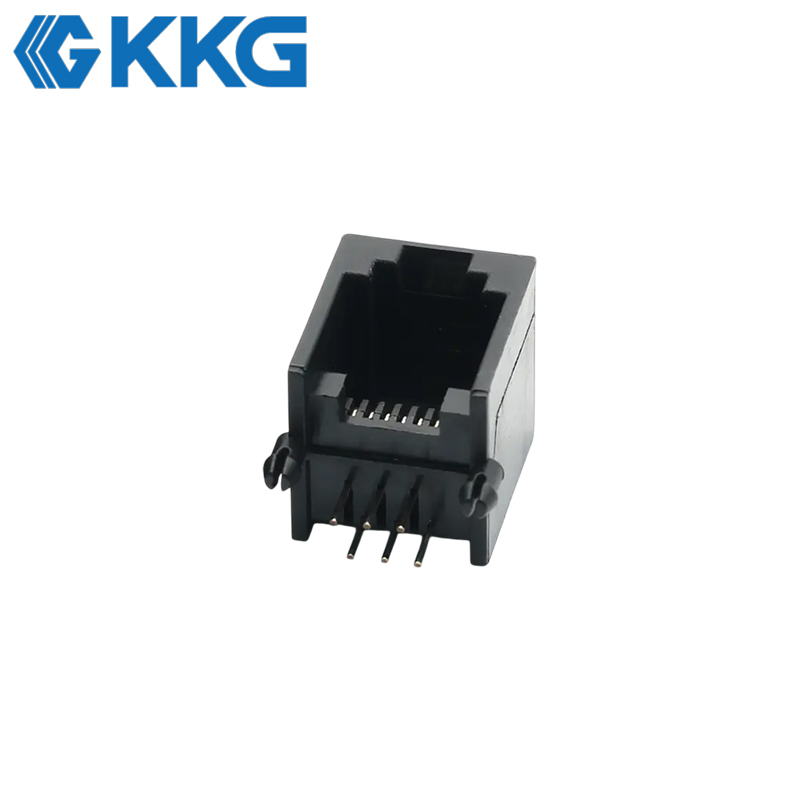

KKG Electronics presents the 5521-1X1, a professional-grade modular socket designed for robust telecommunication connectivity. While often categorized alongside the larger rj45 connector family, this specific 6P6C unit is optimized for 6-wire telephone and serial data interfaces. The component mounts securely to any standard rj45 connector board layout that supports modular jacks, providing a stable right-angle entry point. It features a reinforced housing without flange ears ("No Ear"), saving valuable panel space. As a versatile rj45 switch socket alternative for voice applications, it ensures a high-retention connection with standard telephone plugs. The internal contacts are precision-stamped and gold-plated to prevent oxidation, ensuring clear signal quality. Whether serving as a data port or a voice interface, this rj45 jack style component offers the durability required for industrial controls and commercial communication systems.

Epson TM-T88V RJ45 Socket's Product Operating Principle

Mechanical Engagement: The plastic latch on the inserted modular plug snaps into the internal recess of the socket housing securely anchoring the cable against accidental removal and aligning the pins.
Wiping Contact: Upon insertion the internal phosphor bronze spring contacts flex and wipe against the flat metal blades of the plug removing dust and oxidation to establish a low-resistance electrical path.
Signal Termination: The internal lead frame routes the six distinct electrical signals from the cable interface down through the soldered pins to the printed circuit board traces for processing.

Cisco IP Phone 8800 RJ45 Socket's Product Functions

Communication Interface: Serves as the physical connection point for 6-wire communication systems allowing devices to transmit voice signals or serial data streams (RS-232).
Cable Retention: Provides a mechanically rigid anchor that withstands the tension and weight of coiled handset cords or patch cables protecting the delicate solder joints on the PCB.
Pinout Versatility: Supports various wiring schemes including 2-wire (RJ11) 4-wire (RJ14) and full 6-wire (RJ25) configurations allowing one socket to handle multiple line types.
Circuit Isolation: Maintains electrical separation between the six conductors to prevent crosstalk and short circuits ensuring signal integrity in analog and digital systems.

Intercom Systems: Integrated into the wall station of the Aiphone LEF-3 to provide wired voice communication between rooms.

POS Systems: Used on the serial port of the Epson TM-T88V Thermal Receipt Printer to connect to the cash drawer trigger.

Digital Business Phones: Located on the handset port of the Cisco IP Phone 8800 Series to connect the curly corded receiver.

Industrial Controllers: Integrated into the programming port of the AutomationDirect CLICK PLC to facilitate RS-232 data transfer.

KKG Electronics uses temperature-resistant materials and high-temperature testing equipment.

The product's appearance does not change when tested at 260°C for 5 minutes!

We ensure high production efficiency and ship your order within 7 days after payment.
