Integrated RJ45 Ethernet and USB Interface Jack

Android TV Box X96 RJ45 Socket's Product Introduction

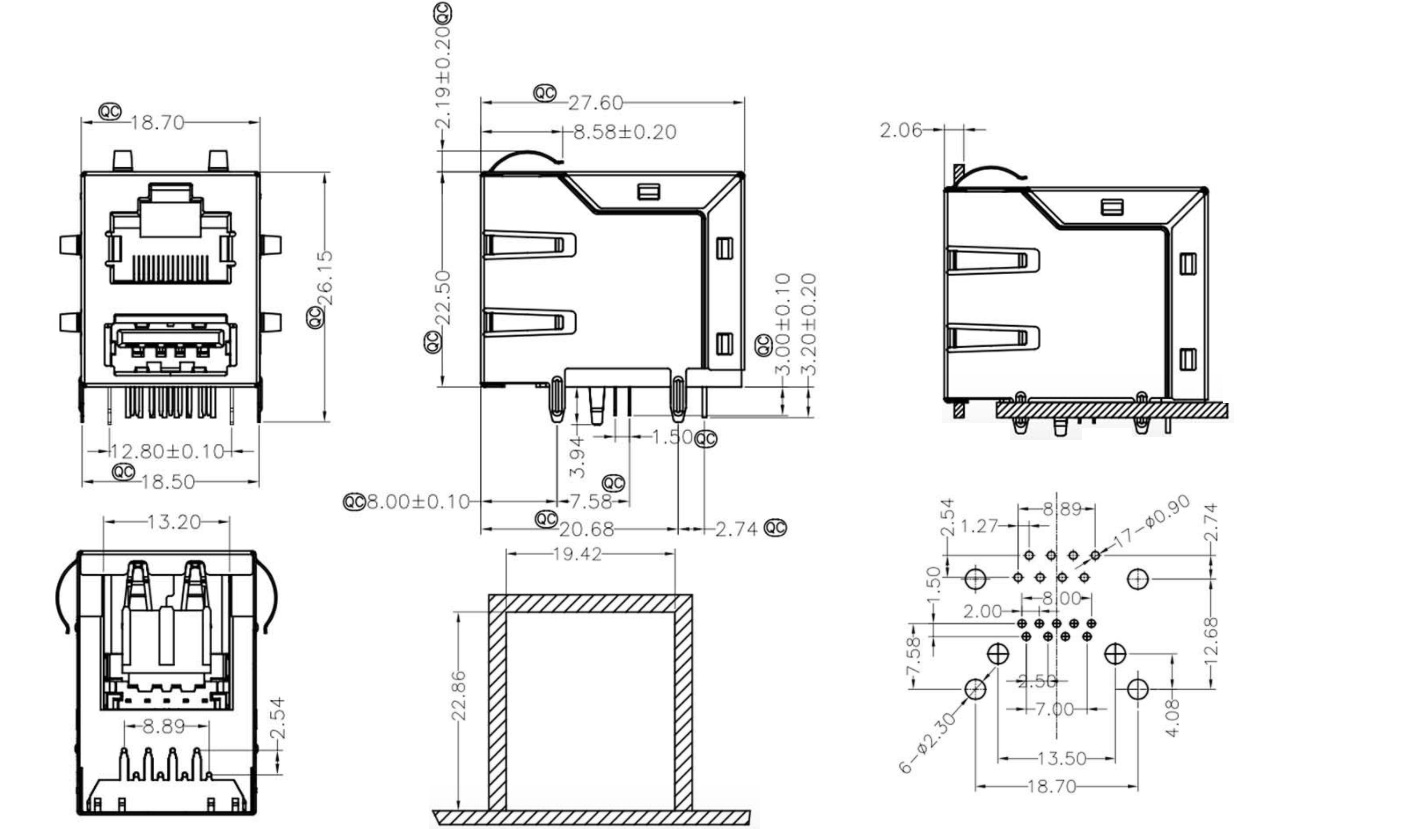

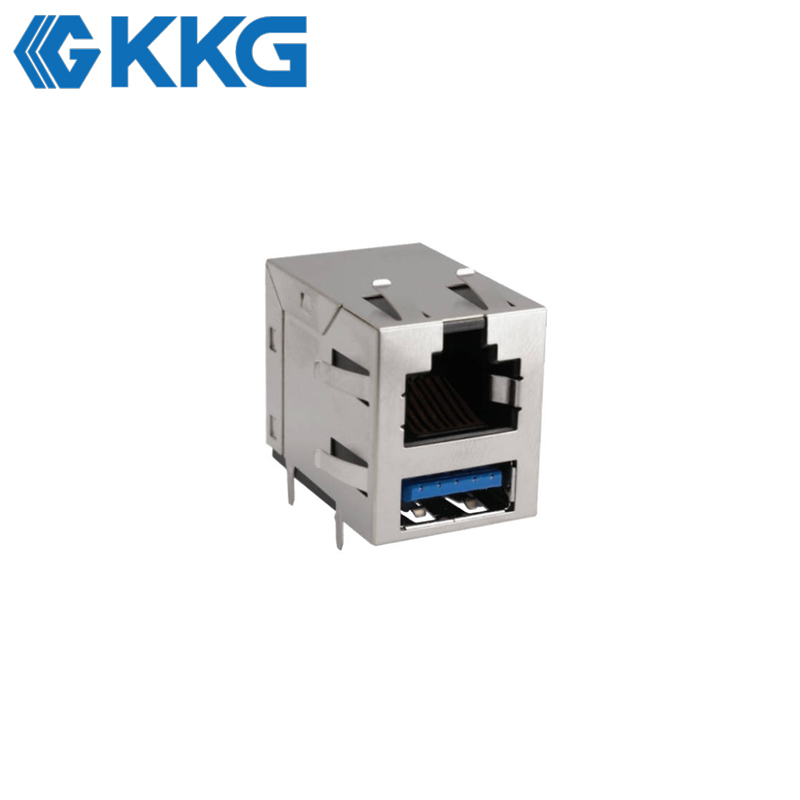

KKG Electronics presents the RJ45-8205-USB3.0, a versatile rj45 connector engineered to maximize functionality in limited spaces. This "Combo" module stacks a Gigabit-ready Ethernet port directly on top of a USB 3.0 Type-A interface, significantly reducing the horizontal footprint on the rj45 connector board. The unit is enclosed in a robust metal shield, protecting both the high-speed network signals and the USB data lines from electromagnetic interference. As a dual-function rj45 connector socket, it provides a rigid mechanical anchor point for both LAN cables and USB peripherals. Unlike a basic rj45 connector 4 pin telephone interface, this 8-pin modular jack supports full high-speed data transmission capabilities. Its integrated design simplifies assembly for single-board computers, industrial gateways, and smart home hubs, ensuring reliable connectivity for both networking and external devices.

Raspberry Pi 3 Model B+ RJ45 Socket's Product Operating Principle

Dual Interface Stacking: The housing vertically integrates two distinct connector standards allowing simultaneous access to Ethernet networking and USB peripherals within a single PCB footprint.
Shared Shielding: A unified metal chassis surrounds both connector cavities providing a common ground path to drain electromagnetic interference and static discharge from both ports.
Signal Isolation: Internal lead frames route the 8 differential Ethernet signals and 4 USB data/power lines to separate pin arrays on the PCB preventing electrical crosstalk.

Siemens IoT2040 RJ45 Socket's Product Functions

Space Optimization: Reduces the required front panel area and PCB real estate by combining two common ports into one vertical block.
Connectivity Hub: Serves as a central I/O point for embedded systems allowing them to connect to the internet and external storage or input devices simultaneously.
Mechanical Rigidity: The multi-pin through-hole footprint anchors the connector securely to the circuit board withstanding the insertion forces of both USB and LAN cables.
EMI Protection: The conductive metal shell acts as a Faraday cage ensuring reliable data transmission for high-speed Ethernet and USB signals in noisy environments.

Single Board Computers: Integrated into the I/O panel of the Raspberry Pi 3 Model B+ to provide Ethernet and USB connectivity in a compact form factor.

Smart TVs: Used on the mainboard of the Samsung Series 7 UHD TV to allow network streaming and USB media playback from a single connector block.

Industrial Gateways: Located on the interface board of the Siemens IoT2040 to facilitate cloud connectivity and local data logging via USB.

Set-Top Boxes: Integrated into the rear panel of the Android TV Box X96 to provide wired internet access and firmware updates via USB.

KKG Electronics uses temperature-resistant materials and high-temperature testing equipment.

The product's appearance does not change when tested at 260°C for 5 minutes!

We ensure high production efficiency and ship your order within 7 days after payment.
