Right Angle Surface Mount Network Socket

Google Nest WiFi Pro RJ45 Socket's Product Introduction

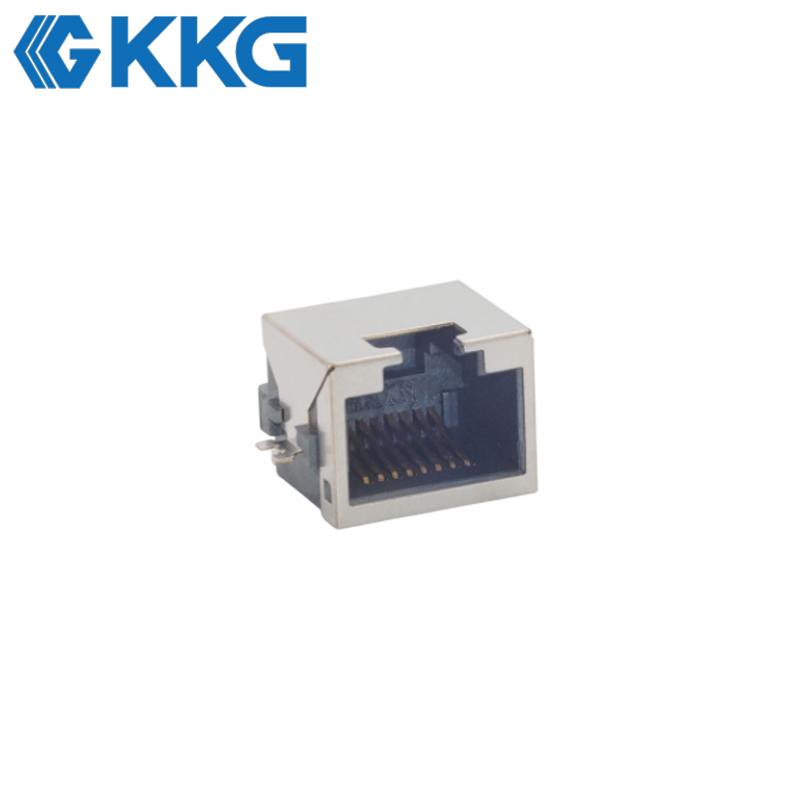

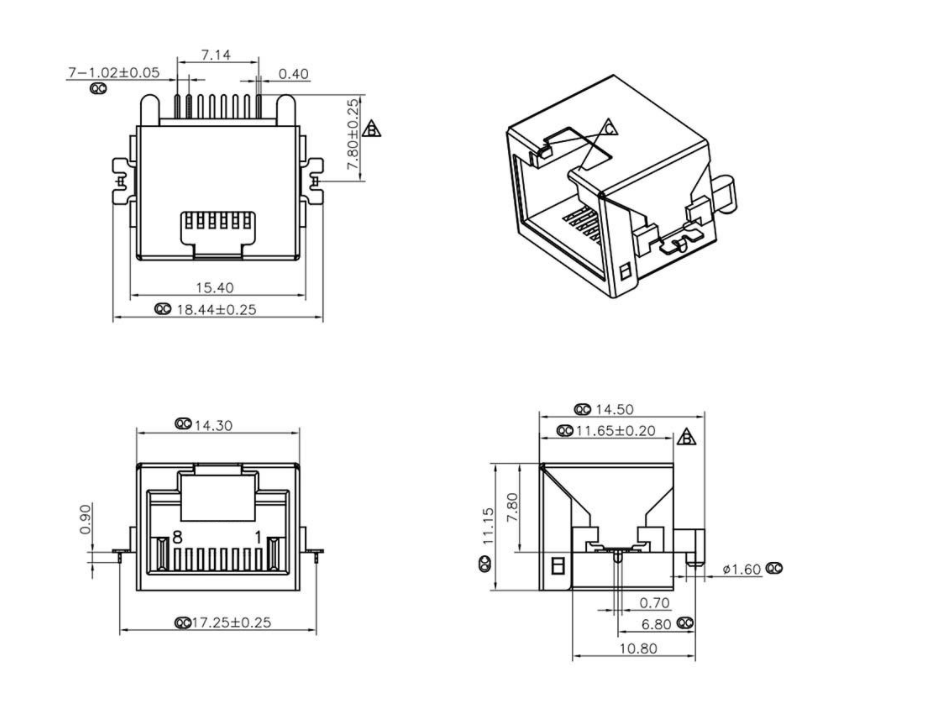

KKG Electronics presents the RJ45-8409 1X1, a precision-engineered rj45 jack designed specifically for modern Surface Mount Technology (SMT) manufacturing. Unlike traditional through-hole components, this socket sits directly on the solder pads of the rj45 connector board, allowing for streamlined automated pick-and-place assembly and reflow soldering. The unit is designed to securely accept a standard rj45 head, providing a tactile locking mechanism that ensures consistent contact pressure. While some legacy telecommunication devices utilize a limited rj45 connector 4 pin interface, this 8-position, 8-contact (8P8C) component supports full high-speed Ethernet protocols. Its low-profile housing is constructed from high-temperature thermoplastic to withstand the heat of reflow ovens. As a reliable rj45 connector socket, it offers excellent mechanical stability and signal integrity, making it the preferred choice for slim laptops, tablets, and compact IoT gateways where internal vertical space is at a premium.

Siemens SIMATIC IOT2050 RJ45 Socket's Product Operating Principle

Surface Mount Interface: Gull-wing style terminals sit flat against the PCB pads allowing the connector to be soldered via reflow ovens rather than wave soldering.
Plug Engagement: The plastic latch on the inserted cable plug snaps into the internal notch of the socket housing to anchor the cable against accidental removal.
Wiping Contact Action: Internal phosphor bronze spring contacts flex and wipe against the plug blades removing oxidation to establish a low-resistance data path.

Dell XPS 13 RJ45 Socket's Product Functions

Automated Manufacturing: Designed with a flat top surface (or cap) to facilitate vacuum suction by pick-and-place machines for high-speed PCB assembly.
Space Efficiency: Eliminates the need for drilling holes through the PCB allowing for routing of signals on internal layers directly beneath the connector.
Data Interface: Serves as the physical entry point for Ethernet signals connecting the external network to the device's internal communication controller.
Mechanical Retention: Includes plastic locating pegs to align the connector precisely on the board before soldering and provide additional shear resistance.

Ultrabooks: Integrated into the slim motherboard of the Dell XPS 13 via a drop-jaw hinge mechanism to provide wired LAN without increasing chassis thickness.

IoT Gateways: Used on the main PCB of the Siemens SIMATIC IOT2050 to provide compact Ethernet connectivity for industrial data collection.

Consumer Routers: Located on the circuit board of the Google Nest WiFi Pro to facilitate WAN connections using automated SMT assembly processes.

Smart Home Hubs: Integrated into the rear panel of the Samsung SmartThings Station to allow for hardwired network backhaul.

KKG Electronics uses temperature-resistant materials and high-temperature testing equipment.

The product's appearance does not change when tested at 260°C for 5 minutes!

We ensure high production efficiency and ship your order within 7 days after payment.

Q1: May I have free samples?
A: Sure, but we need to confirm the product details before shipment. Besides, it is better to provide the AI format artwork to us.

Q2: When can I get the quotation?
A: We will send you quotation within 24 hours after providing product details.

Q3: How long will the samples take to my place?
A: It depends on the express solution you choose, normally it will take 3-5 working days for the fastest way in hihgest price. And commonly in 5-8 days for the cost-effective way.

Q4: Can you accept small order? Like 1000 pcs or 2000 pcs?
A: Sure, but we suggest you buy more, because it really can save your time and freight charge in the near future.

Q5. What about the shipping cost?

A: Depending upon the quantity, shipping method and destination, we will check for you soon if you provide the information to us.
