1x3 Multi-Port Network Interface Socket

Grandstream GXW4216 RJ45 Socket's Product Introduction

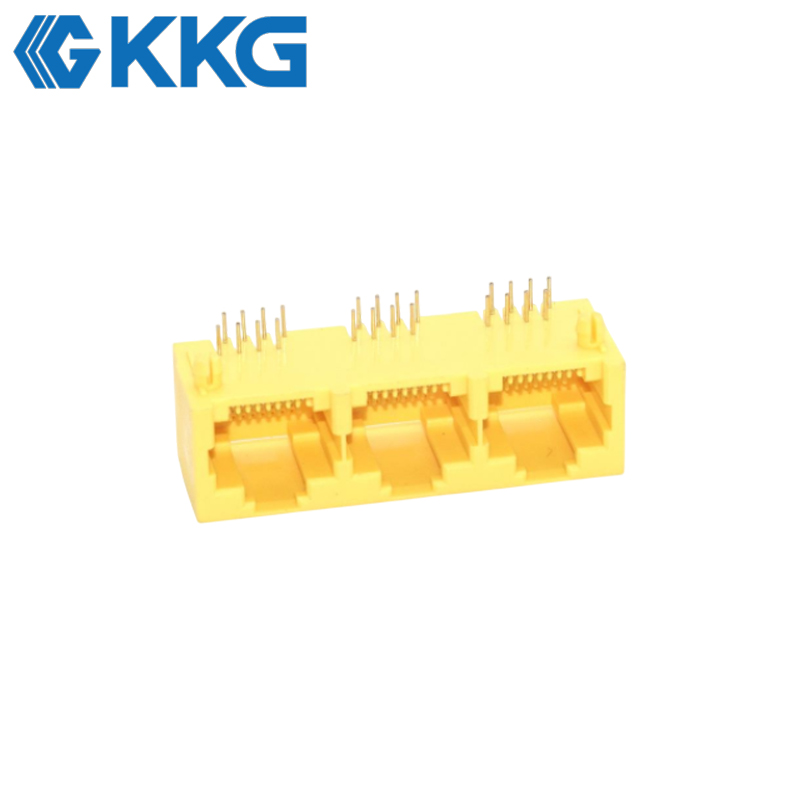

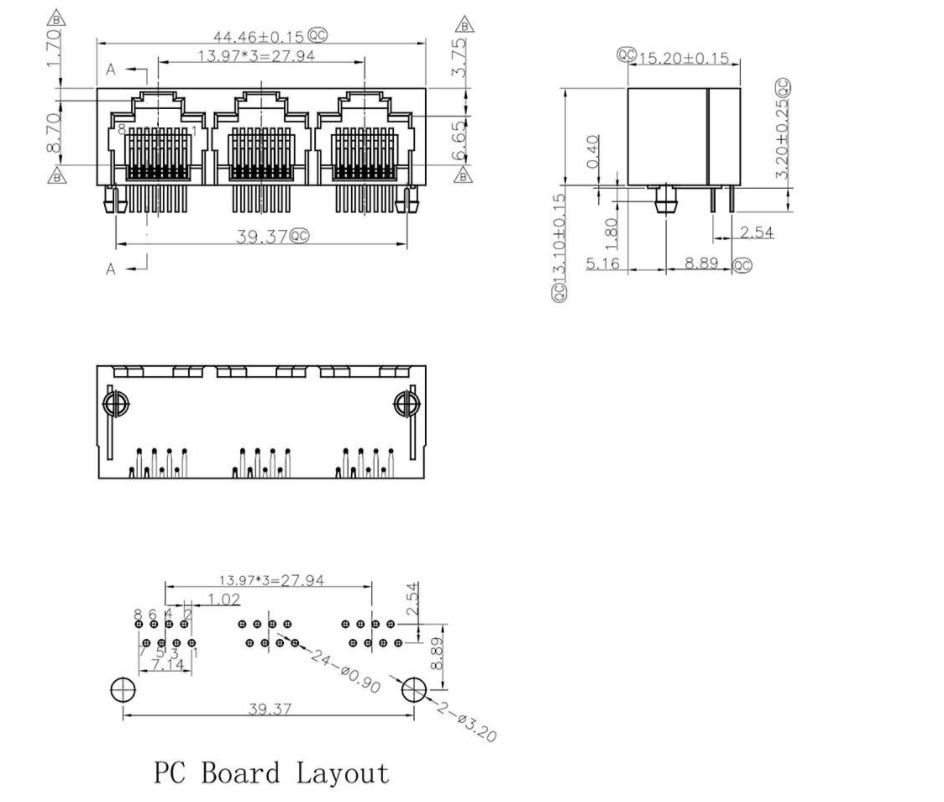

KKG Electronics presents the RJ45-9603 1X3, a high-efficiency rj45 connector socket designed for multi-port networking applications. This "ganged" module integrates three standard 8P8C ports into a single unshielded housing, streamlining the assembly process. It is engineered to mount securely onto any rj45 connector board, providing a stable anchor for multiple LAN cables simultaneously. The reinforced housing ensures that every inserted rj45 head locks firmly into place with a tactile click. By combining three ports into one block, this component reduces misalignment issues often seen when manually placing single jacks on a rj45 connector board. It supports standard Ethernet protocols, making it an ideal solution for routers, switches, and hubs requiring high-density connectivity without the cost of metal shielding.

Linksys Hydra 6 RJ45 Socket's Product Operating Principle

Ganged Integration: The thermoplastic housing molds three distinct jack cavities into a linear block allowing three independent Ethernet cables to connect to the PCB sharing a common structural alignment.
Spring Contact Wiping: Internal phosphor bronze contacts flex to wipe against the plug blades upon insertion removing oxidation to establish a low-resistance electrical path for data transmission.
Mechanical Latching: Internal ridges within each port capture the locking tab of the Ethernet plugs securing them against accidental removal while maintaining constant contact pressure.

Netgear GS305 RJ45 Socket's Product Functions

Port Expansion: Instantly adds three network interfaces to a device using a single component significantly reducing assembly time compared to soldering three individual jacks.
Signal Interface: Connects external LAN cabling to the device's internal magnetic modules or network controllers enabling simultaneous bidirectional data transfer for three devices.
Structural Rigidity: The multi-leg through-hole footprint anchors the connector firmly to the circuit board distributing the mechanical stress of multiple heavy cables across a wider area.
Cost Efficiency: Reduces the total bill of materials and manufacturing complexity for multi-port devices like switches and routers by utilizing a unified housing design.

Network Switches: Integrated into the circuit board of the Netgear GS305 Unmanaged Switch to provide three downstream LAN ports for connected devices.

Home Routers: Used on the rear panel of the Linksys Hydra 6 to connect wired devices like gaming consoles and PCs to the local network.

VoIP Gateways: Integrated into the interface board of the Grandstream GXW4216 to facilitate multiple analog-to-digital voice connections.
