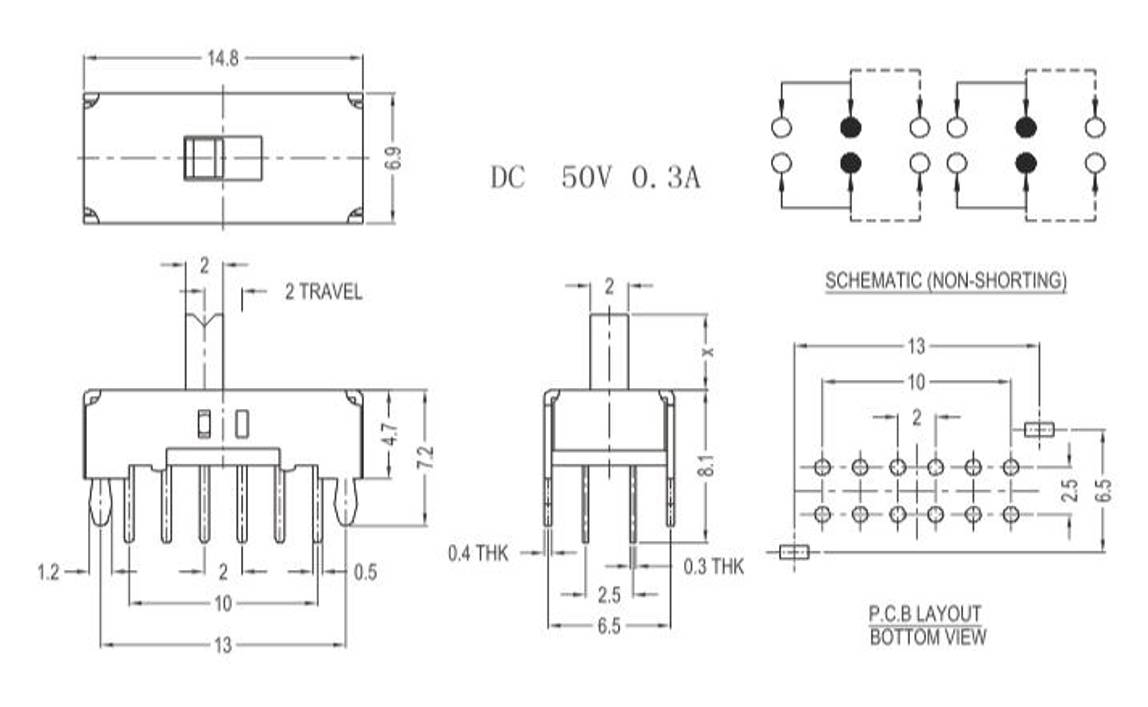

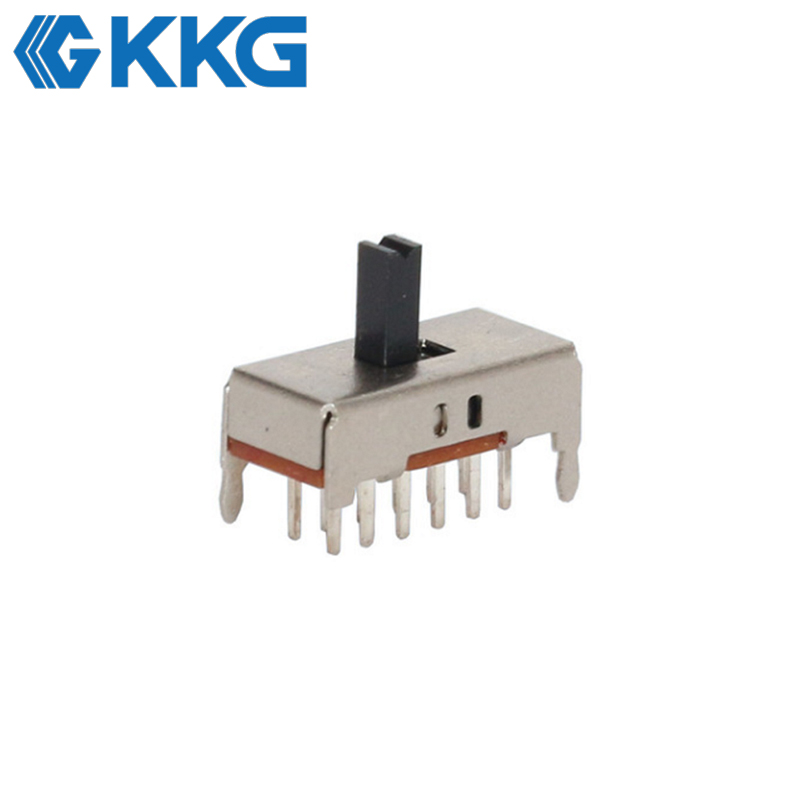

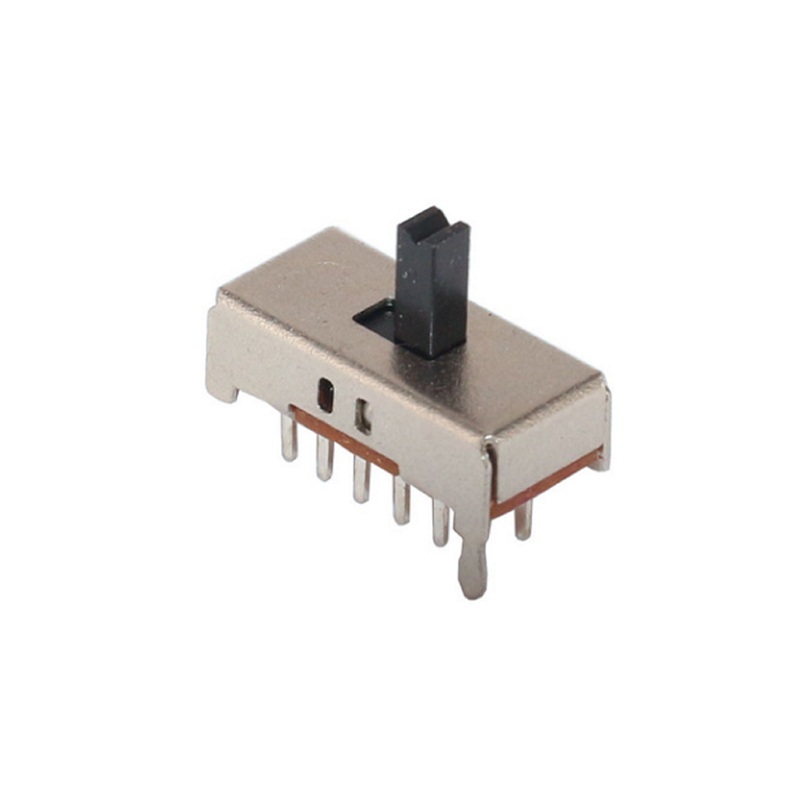

KKG SS42D02: 12-Pin 4PDT Through-Hole Slide Switch

FANUC Slide Switch's Product Introduction

The KKG SS42D02 is an advanced slide switch engineered for complex circuit routing and control. Its 4PDT (Four Pole, Double Throw) configuration allows a single actuator to manage four separate circuits, making it an incredibly powerful and space-saving solution. The robust through-hole design creates a strong mechanical bond to the slide switch pcb, ensuring reliability even with frequent operation. When you need to slide the switch, its long travel and clear detent action provide positive tactile feedback. Offering immense functionality at a competitive slide switch price, this component is perfect for consolidating the functions of multiple switches into one.

Extron Slide Switch's Product Operating Principle

Through-Hole Stability: The switch's pins are inserted through holes in a PCB and soldered on the opposite side, providing a very strong mechanical anchor that resists physical stress and vibration.
Quad-Pole Actuation: A single actuator is internally linked to four separate poles (contacts), allowing them to switch in perfect unison between their two respective throws.
Two-Position Control: The actuator moves the four common poles from their first set of throw terminals to the second set, simultaneously redirecting four distinct electrical paths.

Antelope Audio Zen Go Slide Switch's Product Functions

Complex Signal Routing: Enables the simultaneous switching of four separate signals, such as two balanced stereo audio signals (L+, L-, R+, R-), between two different sources.
Multi-Circuit Power Control: Can be used to control the power state of four different low-power subsystems within a larger device with a single action.
Component Consolidation: Replaces the need for four individual SPDT switches, saving significant board space, simplifying the user interface, and reducing assembly complexity.
Advanced Test Configuration: Provides a reliable physical method for setting up complex test scenarios, routing four signals to two different test points or configurations.

Professional Audio Equipment: Used as an input selector on high-end audio interfaces like the Antelope Audio Zen Go, to switch between two sets of balanced stereo inputs.

Video Switching Systems: Serves as a manual A/B switch for routing multiple signals, such as in a custom KVM switch or a routing panel for Extron video systems.

Industrial Control Panels: Integrated into custom test jigs and industrial control panels to manually switch multiple data or sensor lines, for example, in a control box for a FANUC robotic arm.

KKG Electronics uses temperature-resistant materials and high-temperature testing equipment.

The product's appearance does not change when tested at 260°C for 5 minutes!

We ensure high production efficiency and ship your order within 7 days after payment.

Q1: May I have free samples?
A: Sure, but we need to confirm the product details before shipment. Besides, it is better to provide the AI format artwork to us.

Q2: When can I get the quotation?
A: We will send you quotation within 24 hours after providing product details.

Q3: How long will the samples take to my place?
A: It depends on the express solution you choose, normally it will take 3-5 working days for the fastest way in hihgest price. And commonly in 5-8 days for the cost-effective way.

Q4: Can you accept small order? Like 1000 pcs or 2000 pcs?
A: Sure, but we suggest you buy more, because it really can save your time and freight charge in the near future.

Q5. What about the shipping cost?

A: Depending upon the quantity, shipping method and destination, we will check for you soon if you provide the information to us.
