KKG SS43D05: Heavy-Duty 12-Pin 4P3T Panel Mount Slide Switch

Tektronix 465 Slide Switch's Product Introduction

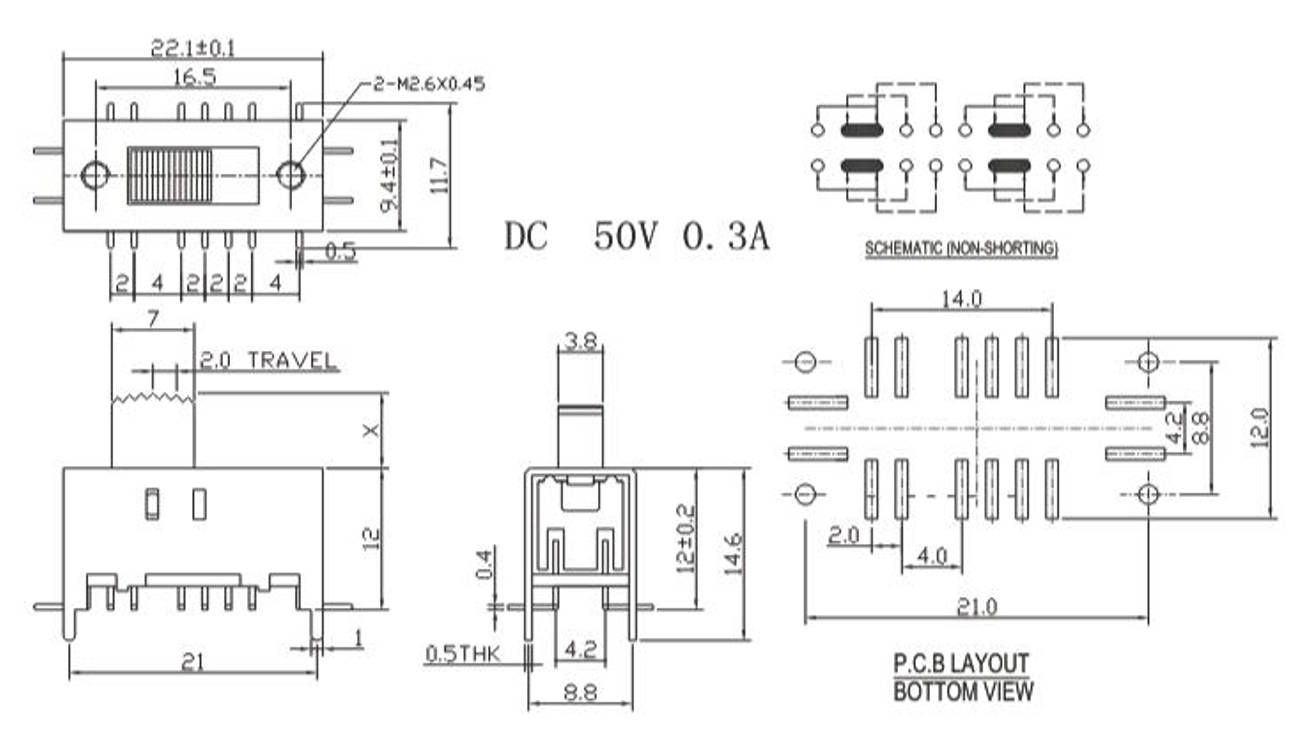

The KKG SS43D05 is a powerful slide switch pcb component engineered for maximum control and durability in complex applications. Its advanced 4P3T (Four Pole, 3-Throw) configuration allows a single actuator to simultaneously control four independent circuits across three distinct positions. The hybrid mounting system, featuring M2.6 screw holes and strong through-hole pins, provides exceptional mechanical stability. The large actuator is ready to accept a custom slide switch cap for a professional finish. When you need a single, durable interface to slide the switch between multiple complex states, the SS43D05 is the definitive choice.

Siemens SIMATIC HMI Slide Switch's Product Operating Principle

Hybrid Mounting Stability: The switch is anchored to a panel via its screw holes while the through-hole pins provide a robust connection to a PCB for signal integrity and support.
Quad-Pole, 3-Throw Control: A single large actuator moves four independent internal contacts (poles) across three distinct sets of terminals, connecting each pole to one of its three corresponding "throw" outputs.
Vertical Actuation: The top-mounted actuator provides a simple, durable physical interface for the user to manually change the state of the switch between its three latching positions.

Rolls SS32 Slide Switch's Product Functions

Complex Signal Routing: Enables the simultaneous redirection of four separate signals to one of three different destinations, perfect for routing in professional audio mixers or test equipment.
Multi-Mode Functionality: Allows a device to be placed in one of three unique operational modes, controlling four different aspects of the circuit for each mode.
Component Consolidation: Replaces a rotary switch or a bank of individual switches with a single, robust component, simplifying the user interface and saving panel space.
Advanced Power & Logic Control: Provides a reliable physical method for setting complex power states or logic configurations in industrial machinery and test jigs.

Audio Matrix Switchers: Used as a core component in professional audio routing switchers like the Rolls SS32, to direct two stereo signals (four channels) to one of three different outputs.

Industrial Control Systems: Serves as a manual function selector on industrial control panels, for example, on a custom interface for a Siemens SIMATIC HMI to select a machine's operational mode (e.g., Setup/Run/Maintenance).

Vintage Test Equipment: Integrated as a main function or range selector on classic oscilloscopes, such as the Tektronix 465, to control multiple aspects of the input signal path.
