4-Pole 3-Position Vertical Slide Switch

ARP Odyssey Slide Switch's Product Introduction

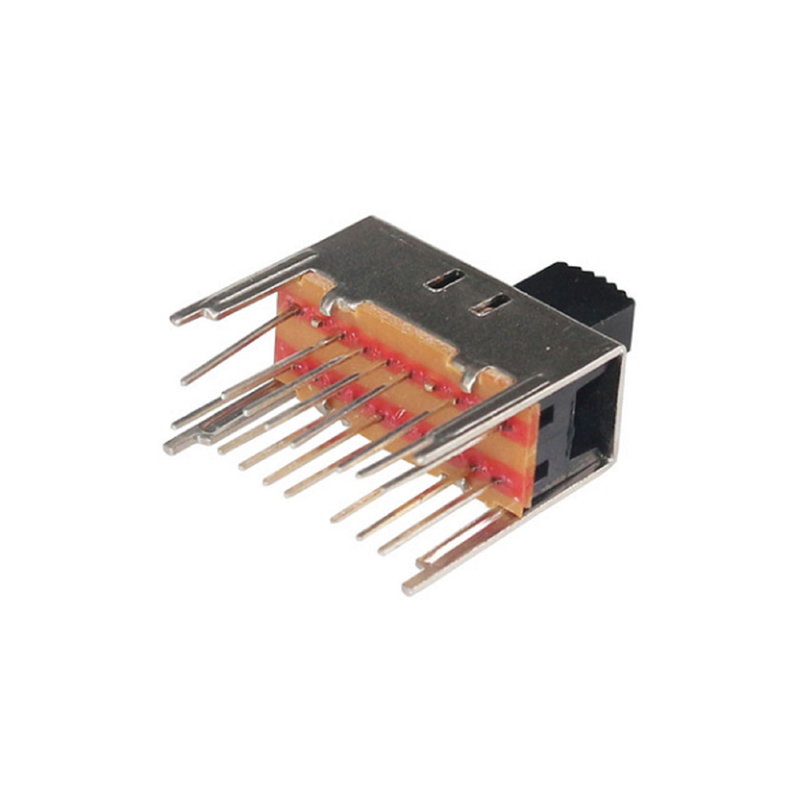

The KKG SS43D10 is an advanced slide switch pcb mount component, engineered for the most demanding applications requiring complex circuit control. The 4P3T (Four Pole, 3-Throw) configuration allows a single actuator to manage four separate circuits across three states, offering unparalleled control from a single interface. Its robust through-hole design ensures a very strong and reliable connection to the circuit board. While primarily a slide switch pcb component, its strong frame is suitable for designs where it might act as a panel mount slide switch behind a custom faceplate. When you need a single, durable interface to slide the switch between multiple complex states, the SS43D10 is the definitive choice.

Bosch ME7 Slide Switch's Product Operating Principle

Through-Hole Stability: The switch's multiple pins are inserted through holes in a PCB and soldered, providing an extremely strong mechanical anchor that resists physical stress.
Quad-Pole, 3-Throw Actuation: A single actuator is internally linked to four separate poles (contacts), allowing them to switch in unison across three distinct terminal positions.
Vertical Actuation: The top-mounted actuator provides a simple, durable physical interface for the user to manually change the state of the switch between its three latching positions.

Behringer Ultrapatch Pro Slide Switch's Product Functions

Complex Signal Routing: Enables the simultaneous redirection of four separate signals to one of three different destinations, ideal for routing in professional audio mixers or test equipment.
Multi-Mode Functionality: Allows a device to be placed in one of three unique operational modes, controlling four different aspects of the circuit for each mode.
Component Consolidation: Replaces the need for up to four separate switches with a single, robust component, saving significant board space and simplifying the user interface.
Advanced Test Configuration: Provides a reliable physical method for setting up complex test scenarios, routing four signals to three different test points or configurations.

Audio Matrix Switchers: Used as a core routing component in professional audio patchbays, such as a custom interface for a Behringer Ultrapatch Pro, to direct two full stereo signals to one of three outputs.

Industrial Test Jigs: Serves as a primary configuration switch in custom-built test jigs, for example, a validation board for an automotive ECU like the Bosch ME7, to switch multiple CAN and power lines.

Vintage Synthesizer Restoration: Integrated into classic synthesizers like the ARP Odyssey as a footage selector, allowing for the simultaneous control of multiple oscillator ranges.

KKG Electronics uses temperature-resistant materials and high-temperature testing equipment.

The product's appearance does not change when tested at 260°C for 5 minutes!

We ensure high production efficiency and ship your order within 7 days after payment.
