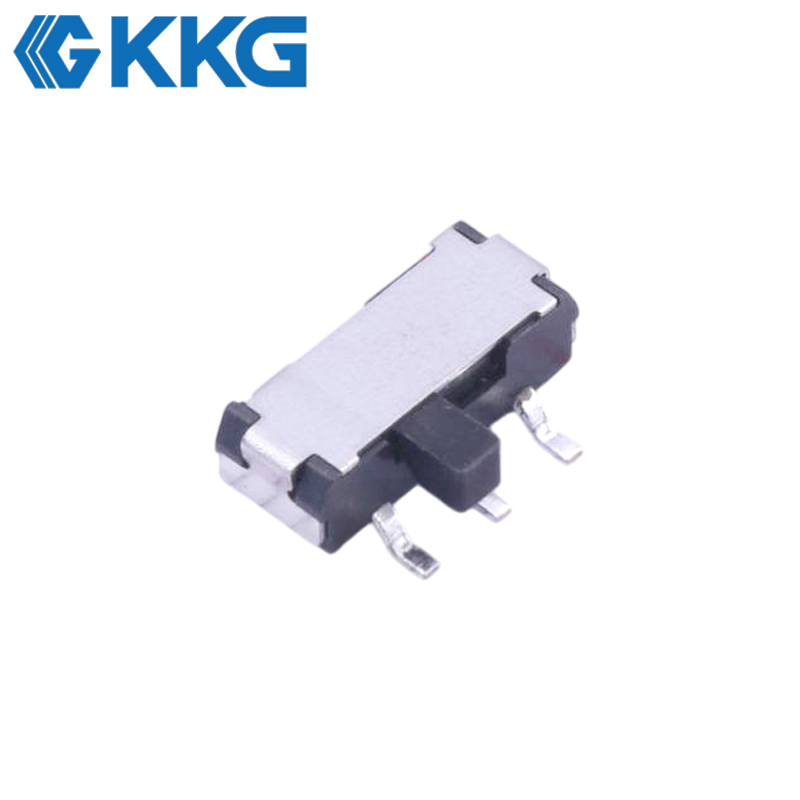

KKG MK-22D14: Surface Mount 6-Pin Slide Switch

Logitech Harmony Companion Slide Switch's Product Introduction

The KKG MK-22D14 is a versatile and compact electrical slide switch, engineered for the demands of modern, high-density electronics. Its DPDT (Double Pole, Double Throw) configuration allows a single actuator to manage two separate circuits, making it ideal for stereo signal routing or DC motor polarity reversal. Designed for automated manufacturing, this slide switch features SMT terminals for a secure and efficient assembly process. With a durable life of 10,000 cycles, the MK-22D14 is a reliable choice for any application requiring dual-circuit control in a miniature form factor.

Anbernic RG351V Slide Switch's Product Operating Principle

Right-Angle Mounting: The through-hole pins are soldered into the PCB, allowing the switch body to sit flat while the actuator is operated parallel to the board, ideal for edge access.
Dual-Circuit Control: The single actuator is mechanically linked to two separate internal contacts (poles), allowing them to switch in perfect unison between their respective throws.
Through-Hole Stability: The pins pass through the circuit board and are soldered on the opposite side, providing a strong mechanical foundation that resists physical stress and vibration.

FiiO K3 Slide Switch's Product Functions

Stereo Signal Routing: Allows for the simultaneous switching of Left and Right audio channels between two different sources, such as in a preamplifier or effects loop.
Polarity Reversal: Can be wired to reverse the positive and negative connections to a small DC motor, enabling forward and reverse directional control in robotics and toys.
Dual Mode Selection: Enables the simultaneous switching of two different aspects of a circuit, for instance changing both a power mode and a data path at the same time.
Space Saving: Replaces the functionality of two separate SPDT switches with a single component, saving valuable board space and simplifying the user interface.

Portable Audio Devices: Used as an input selector on portable DACs like the FiiO K3, switching both left and right audio channels between USB and Coaxial inputs.
Handheld Gaming Consoles: Serves as a power or function switch on retro gaming handhelds, such as the Anbernic RG351V, to control system states.
Remote Controls: Integrated into advanced remote controls, like the Logitech Harmony Companion, to switch between different operational modes that control multiple signals.

KKG Electronics uses temperature-resistant materials and high-temperature testing equipment.

The product's appearance does not change when tested at 260°C for 5 minutes!

We ensure high production efficiency and ship your order within 7 days after payment.

Q1: What's the lead time of bulk order?
A: The lead time is normally 10-14 days. We will inform you lead time before order, and will confirm to you again after received payment.

Q2. What is the payment term?
A: For small quantity order, pls remit payment by PayPal. For bulk order, pls remit payment by T/T.

Q3. Can you open mold for teminal order or uncommon mold?
A: OK, we need time to discuss in details, such us the cost for open mold, and need to know the forecast, end product and lifespan.

Q4:What is your PCB/ PCBA service?
A: Our PCB / PCBA service is about Medical industry, Automobile, Energy, Measurements, Consumer Electronics.

Q5:What kind of files are required for quotation?
A: For PCB quotation, please provide the Gerber data / files and indication of related technical requirements as well as any special.
