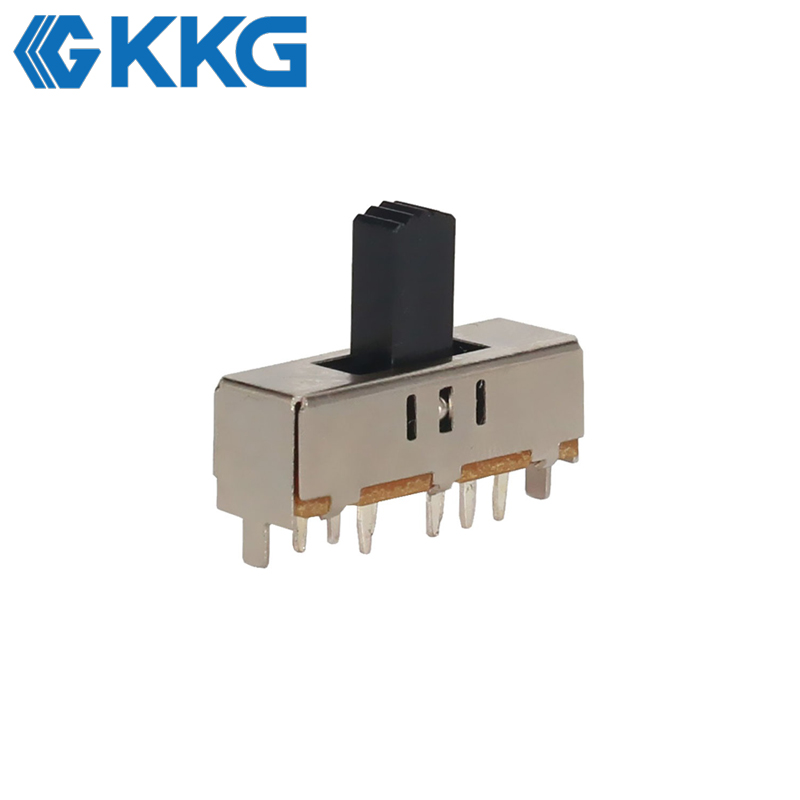

KKG SS-23F08: Triple-Pole PCB Mount Slide Switch

Siemens LOGO! Slide Switch's Product Introduction

The KKG SS-23F08 is a high-performance slide switch pcb component, engineered for advanced circuit control. Its 3PDT (Three Pole, Double Throw) configuration provides three independent switches controlled by a single actuator, offering a level of control far beyond simpler switches. The through-hole design ensures maximum mechanical stability, making this a rugged choice for user interfaces that will be operated frequently. While some applications use a slide switch 8 pin component, the SS-23F08 provides an extra circuit for even more complex designs, making it a truly versatile and powerful solution for professional and industrial electronics.

Neve 1073 Slide Switch's Product Operating Principle

Through-Hole Stability: The switch's pins are inserted through holes in a PCB and soldered on the opposite side, providing a very strong mechanical anchor that resists vibration and physical force.
Triple-Circuit Actuation: A single mechanical actuator is internally linked to three separate poles (contacts), allowing them to switch in perfect unison between their two respective throws.
Two-Position Control: The actuator moves the three common poles from their first set of throw terminals to the second set, simultaneously redirecting three distinct electrical paths.

Strymon BigSky Slide Switch's Product Functions

Advanced Signal Routing: Allows for the simultaneous switching of three separate signals, such as a stereo audio pair plus a control voltage, between two sources.
True Bypass with LED: A classic use in guitar pedals to switch a stereo signal while also controlling the status of an indicator LED with the third pole.
Three-Phase Motor Control: Can be used in low-power applications to control the direction or wiring of a small three-phase DC motor.
Component Consolidation: Replaces the functionality of three separate SPDT switches with a single, more robust component, simplifying the user interface.

Boutique Guitar Pedals: Used as a true-bypass switch in stereo effects pedals like the Strymon BigSky, which routes both left and right audio channels and controls an indicator light simultaneously.

Professional Audio Equipment: Serves as a primary function switch on studio preamplifiers, such as the Neve 1073, to control functions like Phantom Power, Phase Invert, and EQ bypass across a signal path.

Industrial Control Systems: Integrated into manual control panels for industrial machinery, for instance, a custom interface for a Siemens LOGO! system to control three separate outputs with a single action.

KKG Electronics uses temperature-resistant materials and high-temperature testing equipment.

The product's appearance does not change when tested at 260°C for 5 minutes!

We ensure high production efficiency and ship your order within 7 days after payment.
