Sub-Miniature Slide Switches

8.60mm*2.90mm Function ‧1P2T function ‧SMD design ‧2.0mm travel ‧Compact design APPLICATIONS The mouse keyboard, digital camera, bluetooth headset, car, mobile phone, the sound

Inquire Now

Product Details

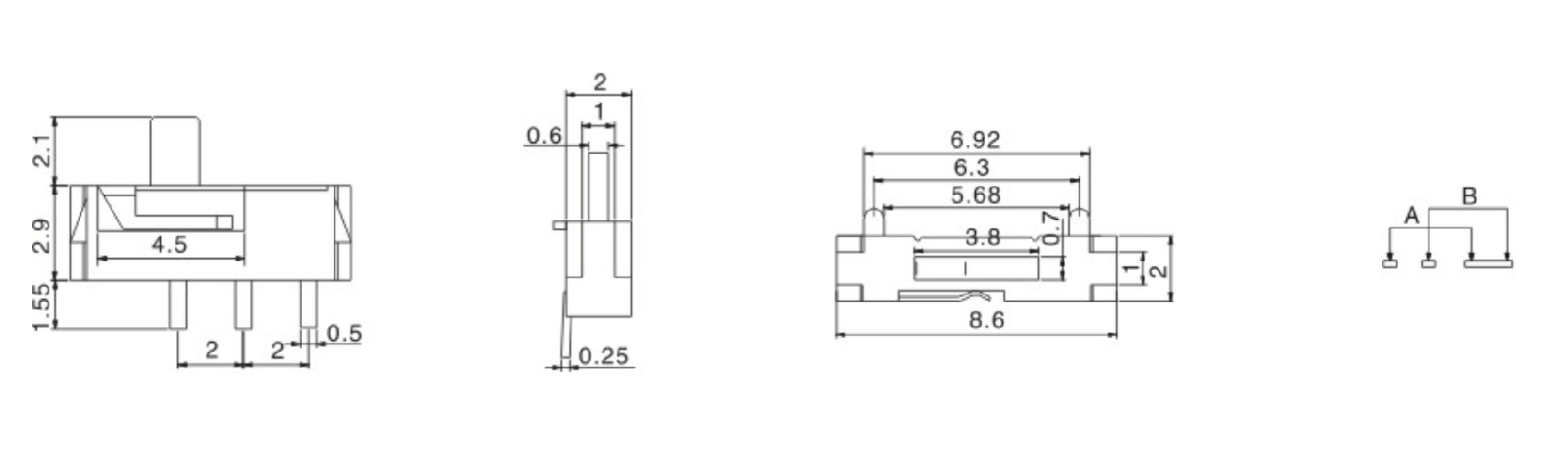

DIMENSIONS

Application

Consumer Electronics: Used in devices like remote controls, handheld gadgets, and audio equipment.

Home Appliances: Found in appliances such as microwaves, coffee makers, and air purifiers.

Automotive: Integrated into dashboards, control panels, and vehicle accessories.

Industrial Equipment: Utilized in machinery, control systems, and automation processes.

Medical Devices: Applied in diagnostic tools, patient monitoring equipment, and medical instruments.

Telecommunications: Used in network devices and communication systems.

Sub-Miniature Slide Switches: Key Features and Technical Specifications

1. Compact Design: Sub-miniature slide switches are engineered for space-constrained applications, with typical dimensions as small as 6.5mm × 3.5mm × 3.2mm (L×W×H). Their ultra-small footprint allows integration into high-density PCB layouts or portable devices where real estate is limited.

2. Low Contact Resistance: These switches offer exceptional electrical performance with contact resistance values as low as ≤20mΩ (milliohms) when measured at 1A DC. This ensures minimal voltage drop and power loss in signal or low-current applications.

3. High Reliability: With a mechanical life expectancy of ≥10,000 cycles and an operating temperature range of -40°C to +85°C, these switches maintain stable performance in demanding environments. Gold-plated contacts (typically 3μm thickness) enhance durability against oxidation.

4. Precise Actuation: The slide mechanism delivers crisp tactile feedback with an operating force between 200-400gf (gram-force) and travel distances of 1.0±0.3mm. This ensures positive switching action while preventing accidental toggling.

5. Versatile Configurations: Available in SPDT, DPDT, or SP3T contact arrangements with current ratings up to 0.5A at 24VDC. Some models feature surface-mount (SMD) terminations with 1.27mm pitch for automated assembly compatibility.

6. Environmental Resistance: Many variants meet IP67 ingress protection standards when properly sealed, with dielectric withstand voltages of 250VAC for 1 minute. RoHS-compliant materials ensure compliance with environmental regulations.
