Compact Push-Eject Memory Card Interface

DJI Mavic 3 TF Card Connector's Product Introduction

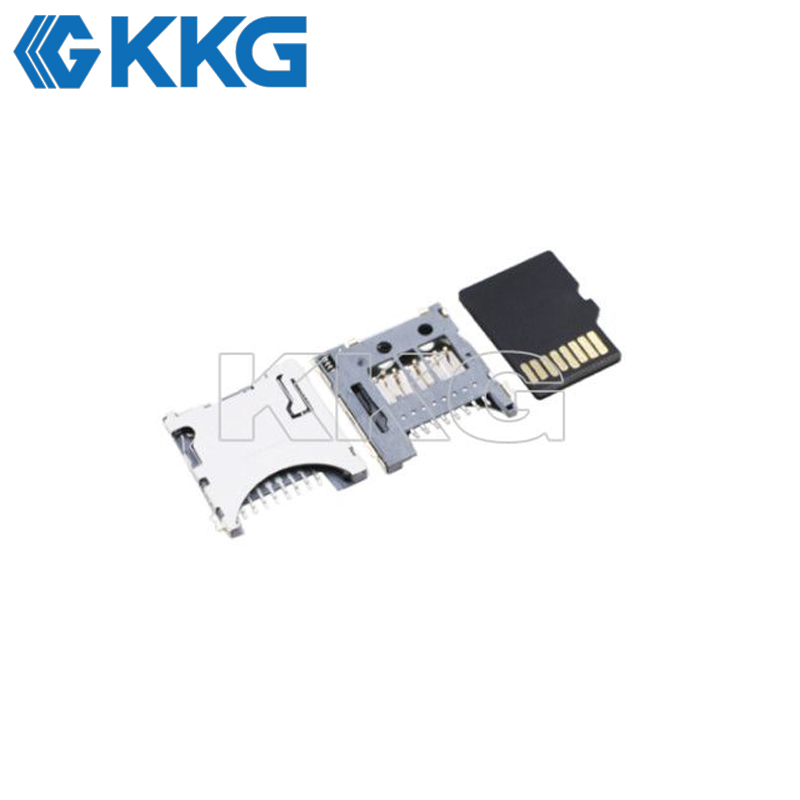

KKG Electronics presents the TF-2162, a high-performance card socket designed for modern mobile and embedded devices. This component utilizes a sophisticated "push-push" mechanism, ensuring the media is securely locked during operation and easily ejected with a soft press. As a premium memory card socket, it is constructed with high-temperature thermoplastics to withstand SMT reflow soldering. The interface ensures high-speed data transmission through precision gold-plated contacts. While engineers often search for a sim connector or sim socket for communication, this device is specifically engineered for TransFlash storage expansion. Its robust metal shell provides EMI shielding and structural reinforcement. The unit includes an integrated card detection switch, allowing the host processor to manage power states efficiently when media is inserted or removed.

70mai A800S TF Card Connector's Product Operating Principle

Push-Push Ejection: The connector features an internal cam track and spring system where pushing the card in locks it effectively and a second push releases the latch to eject the card.
Electrical Engagement: As the card slides into the housing the flexible gold-plated contact beams wipe against the card pads to remove oxidation and establish a secure data path.
Presence Detection: A mechanical card detect switch located at the side is physically depressed by the inserted card sending a signal to the MCU to initialize the driver.

Analogue Pocket TF Card Connector's Product Functions

Storage Interface: Acts as the physical bridge for SPI or SDIO communication protocols allowing the device to read and write data to external flash memory.
Mechanical Retention: Secures the media card against vibration and shock preventing data corruption caused by intermittent contact during operation in portable devices.
Hot-Swap Capability: Facilitates the safe insertion and removal of storage media while the device is powered on managed by the specific pin sequencing.
EMI Shielding: The stainless steel cover provides structural reinforcement and connects to the PCB ground pads to shield high-speed data signals from interference.

Surveillance Drones: Integrated into the fuselage of the DJI Mavic 3 to provide high-speed onboard storage for 5.1K video capture.
Single Board Computers: Used on the expansion slot of the Orange Pi 5 to house the operating system or extra data storage.
Dash Cameras: Located on the side of the 70mai A800S 4K Dash Cam to facilitate continuous loop recording of driving footage.
Handheld Gaming: Integrated into the storage port of the Analogue Pocket to allow users to load game ROMs and save states.

KKG Electronics uses temperature-resistant materials and high-temperature testing equipment.

The product's appearance does not change when tested at 260°C for 5 minutes!

We ensure high production efficiency and ship your order within 7 days after payment.
