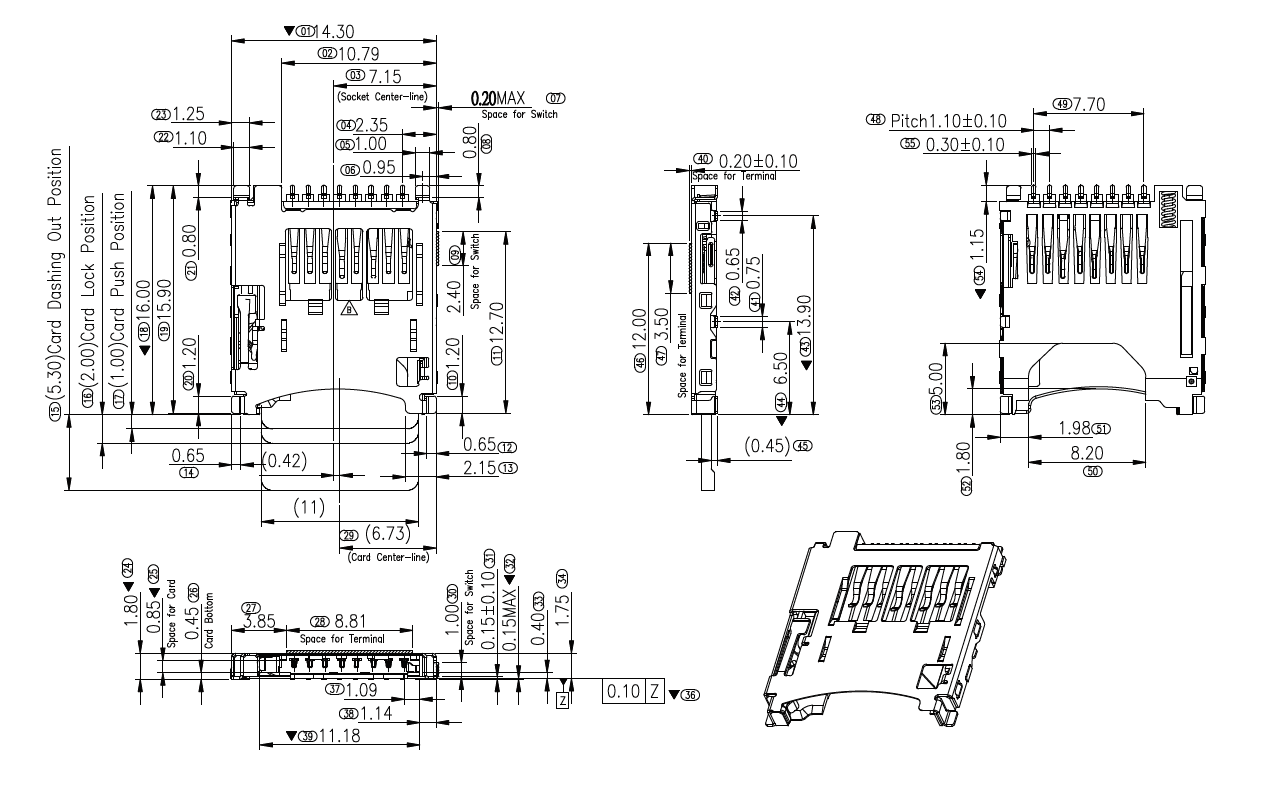

Surface Mount Push-Push Card Socket

Siemens SIMATIC HMI TF Card Connector's Product Introduction

KKG Electronics presents the TF-2702, a high-precision storage interface designed for reliable removable media connections. While physically formatted for TransFlash memory, its robust thermoplastic construction rivals the durability of a premium nano sim card connector. This component utilizes a smooth "push-push" internal spring mechanism, allowing for effortless insertion and secure locking of the card. In complex IoT devices, this socket often functions alongside a micro sim card connector, handling data logging while the SIM handles communication. The unit features gold-plated contacts that resist oxidation, ensuring signal integrity comparable to a high-end micro sim connector. Additionally, the integrated card detect switch allows the host system to manage power efficiently. Designed for versatility, the TF-2702 serves as a dependable storage solution in devices where a standard micro sim socket would be too small for the required memory capacity.

FiiO M11S TF Card Connector's Product Operating Principle

Push-Push Mechanism: The connector utilizes a cam and spring system where the user pushes the card inward to lock it into the reading position and pushes it again to release the lock and eject the media.
Contact Engagement: As the card slides into the housing the cantilevered gold-plated contacts wipe against the card pads removing surface oxides to establish a low-resistance electrical connection.
Card Detection: A mechanical leaf switch located at the rear of the housing is physically deflected by the inserted card closing the circuit to signal the processor that media is present.

Aeotec Smart Home Hub TF Card Connector's Product Functions

Data Interface: Acts as the physical bridge for high-speed serial communication protocols allowing the device to read and write large files to the external flash memory.
Mechanical Retention: Securely holds the card against the contacts using a spring-loaded latch ensuring data is not corrupted by vibration or accidental disconnections during operation.
Hot-Plug Support: Facilitates the insertion and removal of storage media while the device is powered on managed by the detect switch logic to prevent electrical surges.
Structural Protection: The reinforced thermoplastic housing protects the delicate internal contacts from damage during card insertion and provides a soldering surface for SMT assembly.

Vehicle Telematics: Integrated into the mainboard of the CalAmp LMU-3030 OBD-II tracker to log driving data locally when the cellular network is unavailable.
Smart Home Hubs: Used on the rear panel of the Aeotec Smart Home Hub to allow users to back up system configurations and logs to removable storage.
Industrial HMI: Located on the side of the Siemens SIMATIC HMI Basic Panel to enable easy transfer of project files and alarm logs.
Portable Audio Players: Integrated into the chassis of the FiiO M11S Hi-Res Music Player to provide massive expandable storage for lossless audio files.
