Surface Mount Push-Push Memory Card Connector

Samsung Galaxy A54 TF Card Connector's Product Introduction

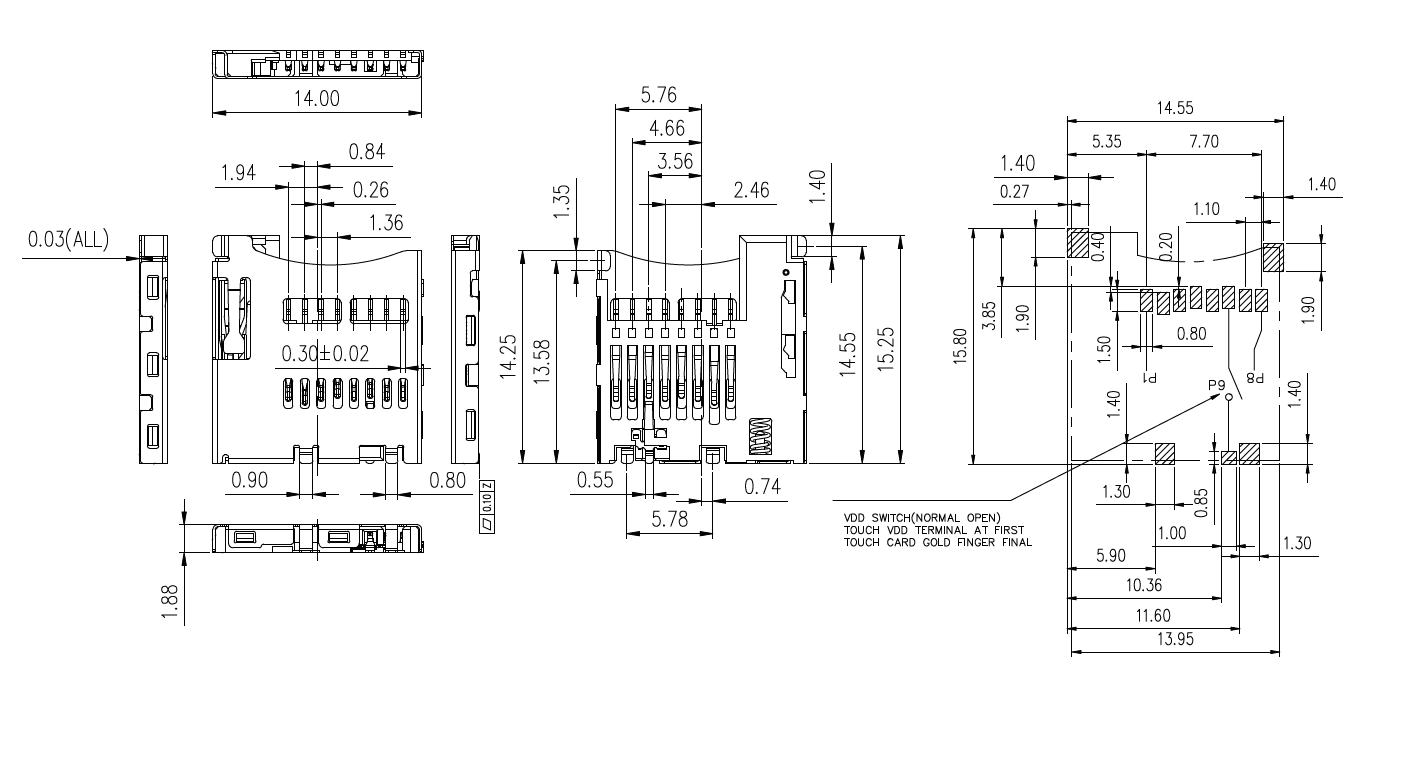

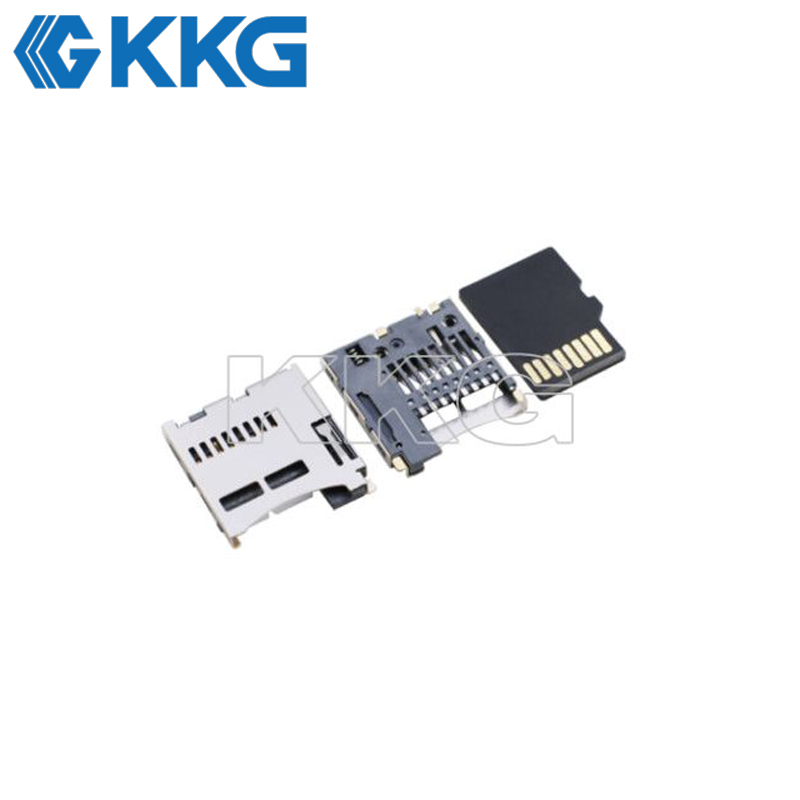

KKG Electronics presents the TF-4492, a precision-engineered micro sd card connector designed for high-density electronic assemblies. Featuring a smooth "push-push" ejection mechanism, it ensures secure media retention and easy user access. While engineers often prioritize the connectivity of a nano sim socket for mobile networks, expandable storage remains critical for data logging and media playback. This component is built with high-temperature thermoplastics suitable for modern sim card pcb layouts where board space is at a premium. The interface utilizes precision gold-plated contacts to ensure high-speed data transmission and oxidation resistance. Although the form factor differs, the reliability rivals that of a robust sim card socket pinout connection, providing a durable solution for consumer electronics, IoT devices, and industrial controllers.

Garmin Dash Cam Mini 2 TF Card Connector's Product Operating Principle

Push-Push Ejection: The connector features an internal cam track and spring system where pushing the card in locks it effectively and a second push releases the latch to eject the card.
Electrical Engagement: As the card slides into the housing the flexible gold-plated contact beams wipe against the card pads to remove oxidation and establish a secure data path.
Presence Detection: A mechanical card detect switch located at the side is physically depressed by the inserted card sending a signal to the MCU to initialize the driver.

Dragino LG01 TF Card Connector's Product Functions

Storage Interface: Acts as the physical bridge for SPI or SDIO communication protocols allowing the device to read and write data to external flash memory.
Mechanical Retention: Secures the media card against vibration and shock preventing data corruption caused by intermittent contact during operation in portable devices.
Hot-Swap Capability: Facilitates the safe insertion and removal of storage media while the device is powered on managed by the specific pin sequencing.
Board Integration: Designed to fit alongside other communication components like a nano sim socket allowing for mixed-signal integration on a single circuit board.

Smartphones: Integrated into the mainboard of the Samsung Galaxy A54 to provide expandable storage for photos and applications alongside the sim card pcb.
IoT Gateways: Used on the expansion slot of the Dragino LG01 LoRa Gateway to store local logs and sensor data configuration files.
Dash Cams: Located on the side of the Garmin Dash Cam Mini 2 to facilitate continuous loop recording of driving footage.
Tablet Computers: Integrated into the chassis of the Lenovo Tab P11 to allow users to upgrade memory capacity easily.

KKG Electronics uses temperature-resistant materials and high-temperature testing equipment.

The product's appearance does not change when tested at 260°C for 5 minutes!

We ensure high production efficiency and ship your order within 7 days after payment.

Q1: How do you manage production delays caused by unforeseen supply chain disruptions?

A: Our risk-mitigation plan includes buffer stock for critical components and real-time supplier escalation. Clients receive weekly updates and adjusted timelines within 24 hours of disruption identification.

Q2: Are raw materials sourced from conflict-free or ethically certified suppliers?

A: Yes, we adhere to the Responsible Minerals Initiative (RMI) and provide SMETA-audited supply chain reports. All tantalum/tin suppliers are certified conflict-free via OECD Due Diligence.

Q3: How can you ensure the quality?

A:  All our products are 100% tested before delivery. Durable quality is guaranteed.

Q4: Can you modify existing designs to reduce electromagnetic susceptibility (EMS) in high-noise environments?

A: Design revisions like shielded ferrite bead integration or ground plane optimization are available. Our engineers provide EMS simulation reports pre-production.

Q5: What logistics partners do you work with for global distribution?

A: We partner with DHL, FedEx, and regional specialists like SF Logistics (Asia). Customs clearance, HS code labeling, and door-to-door tracking are included.
