Surface Mount Push-Push Memory Card Connector

Dragino LG01 TF Card Connector's Product Introduction

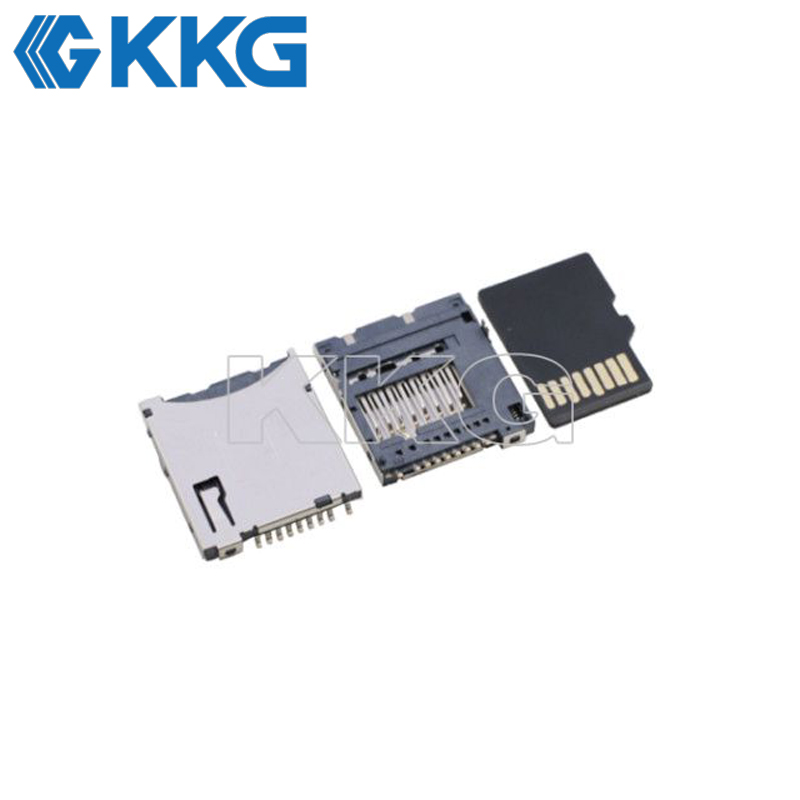

KKG Electronics presents the TF-2532, a high-precision storage interface designed for modern electronic assemblies. This component utilizes a smooth "push-push" mechanism, ensuring the media is securely locked during operation and easily ejected with a soft press. While often utilized in devices that also require a dual sim connector for connectivity, this specific unit is dedicated to high-speed TransFlash storage expansion. The housing is constructed from high-temperature thermoplastics suitable for SMT reflow soldering processes. As a versatile card socket, it features a reinforced metal shell that provides excellent EMI shielding. Designers frequently pair this component with a sim socket on the same PCB to offer users both communication and memory capabilities. Its robust contact design ensures long-term reliability, making it a dependable sim connector alternative for storage-focused applications in consumer electronics and IoT gateways.

Samsung Galaxy A54 TF Card Connector's Product Operating Principle

Push-Push Ejection: The connector features an internal cam track and spring system where pushing the card in locks it effectively and a second push releases the latch to eject the card.
Electrical Engagement: As the card slides into the housing the flexible gold-plated contact beams wipe against the card pads to remove oxidation and establish a secure data path.
Presence Detection: A mechanical card detect switch located at the side is physically depressed by the inserted card sending a signal to the MCU to initialize the driver.

Lenovo Tab P11 TF Card Connector's Product Functions

Storage Interface: Acts as the physical bridge for SPI or SDIO communication protocols allowing the device to read and write data to external flash memory.
Mechanical Retention: Secures the media card against vibration and shock preventing data corruption caused by intermittent contact during operation in portable devices.
System Integration: Often implemented alongside a dual sim connector to provide a complete communication and storage solution within a compact device footprint.
EMI Shielding: The stainless steel cover provides structural reinforcement and connects to the PCB ground pads to shield high-speed data signals from interference.

Smartphones: Integrated into the mainboard of the Samsung Galaxy A54 to provide expandable storage for photos and applications near the sim connector.
IoT Gateways: Used on the expansion slot of the Dragino LG01 LoRa Gateway to store local logs and sensor data configuration files.
Dash Cams: Located on the side of the Garmin Dash Cam Mini 2 to facilitate continuous loop recording of driving footage via the card socket.
Tablet Computers: Integrated into the chassis of the Lenovo Tab P11 to allow users to upgrade memory capacity easily.
