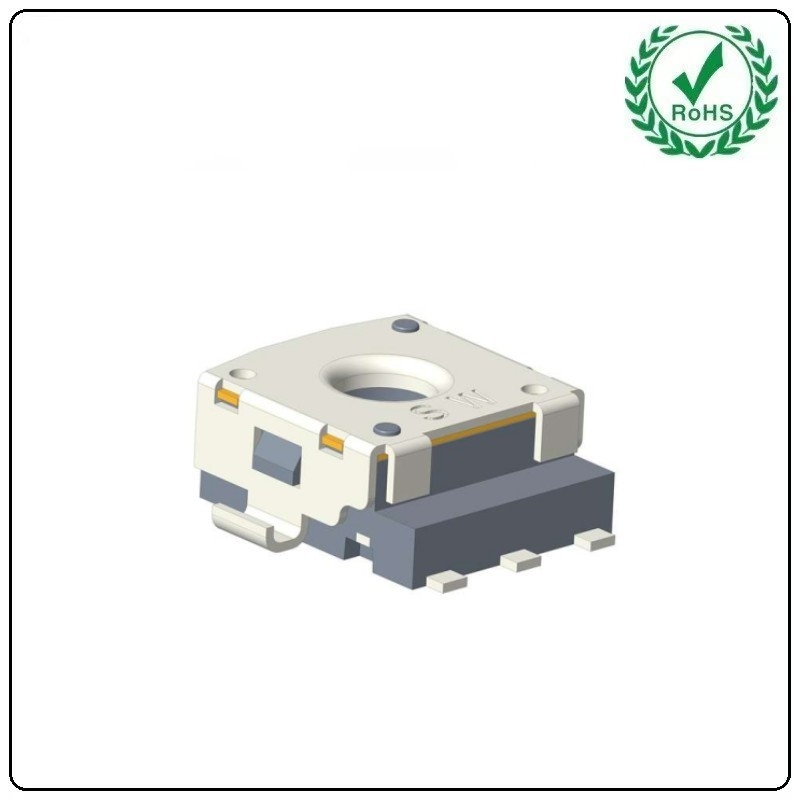

Through Shaft Encoder

A Through Shaft Encoder,also known as a Hollow Shaft Encoder or Through Bore Encoder,is an advanced rotary feedback device designed to measure the angular position,rotation speed,and direction of rotating equipment.Unlike traditional Rotary Encoders,a through shaft encoder features a hollow center design,allowing the machine shaft,cables,or other components to pass directly through the encoder body.

This unique structure simplifies installation,saves mechanical space,and improves system integration,making it an ideal solution for industrial automation,robotics,motor control,CNC machinery,and precision motion systems.

As a reliable industrial encoder,the through shaft encoder provides accurate feedback signals that help machines achieve better positioning control,higher efficiency,and improved operational stability.

How Does a Through Shaft Encoder Work?

The working principle of a Through Shaft Encoder is based on converting mechanical rotation into electrical signals.

When the rotating shaft moves,the internal sensing element detects changes in position and generates output signals.The control system analyzes these signals to determine:

• Rotational position

• Rotation speed

• Movement direction

• Distance traveled

Depending on the sensing technology,through shaft encoders are mainly divided into two types:

Optical Through Shaft Encoder

An optical encoder uses an LED light source and a coded disk with transparent and opaque patterns.When the disk rotates,the sensor detects light changes and converts them into digital pulses.

Advantages include:

• High resolution

• Excellent accuracy

• Fast response speed

• Magnetic Through Shaft Encoder

A magnetic encoder uses magnetic fields and Hall-effect sensors to detect shaft movement.

Advantages include:

• Strong resistance to dust and vibration

• Reliable performance in harsh environments

• Longer service life

Both types are widely used as precision encoders in modern automated systems.

Key Features of Through Shaft Encoder

1.Hollow Shaft Design

The biggest advantage of a Hollow Shaft Encoder is its through-hole structure,which allows direct mounting onto existing shafts without additional couplings.

Benefits include:

• Easy installation

• Reduced mechanical complexity

• Space-saving design

• Improved system reliability

2.High Precision Position Feedback

Through shaft encoders provide accurate motion feedback with high resolution,enabling precise control of motors,robots,and automated equipment.

They are suitable for applications requiring:

• Accurate positioning

• Speed monitoring

• Motion synchronization

3.Multiple Output Options

A Rotary Encoder can provide different output signals according to system requirements,including:

• Incremental output

• Absolute output

• A/B phase signals

• A/B/Z pulse signals

This flexibility allows easy integration with various control systems.

4.Strong Industrial Durability

Designed for demanding industrial environments,through shaft encoders can withstand:

• Vibration

• Dust

• Temperature changes

• Continuous operation

High-quality materials and robust structures ensure long-term reliability.

Advantages of Through Shaft Encoder

Improved Installation Efficiency

The hollow shaft structure allows direct installation on motors and rotating shafts,eliminating the need for additional couplings and reducing assembly time.

High Measurement Accuracy

Advanced sensing technology enables precise position and speed measurement,improving machine performance and product quality.

Compact Mechanical Design

The through-hole design reduces installation space,making it suitable for equipment with limited mounting areas.

Stable Long-Term Operation

A high-quality Encoder Sensor provides consistent feedback performance even under continuous industrial operation.

Wide Application Compatibility

Through shaft encoders are available in different sizes,resolutions,and output configurations to meet various automation requirements.

Applications of Through Shaft Encoder

Industrial Automation

In automated production lines,through shaft encoders monitor motor rotation,conveyor speed,and machine positioning to improve manufacturing efficiency.

Common applications include:

• Servo motors

• Automated assembly equipment

• Packaging machines

• Material handling systems

Robotics

Robotic systems require accurate motion control.Through shaft encoders provide real-time feedback for:

• Robotic joints

• Robotic arms

• Automated guided vehicles(AGVs)

They help robots achieve accurate movement and repeatable operations.

CNC Machines

In CNC machining equipment,precision feedback is essential for accurate cutting and positioning.

Through shaft encoders are used for:

• Spindle position control

• Axis movement monitoring

• Machine calibration

Automotive Equipment

Through shaft encoders are applied in:

• Electric motors

• Testing equipment

• Vehicle manufacturing systems

They help improve motor efficiency and control accuracy.

Aerospace and Defense Equipment

Due to their reliability and accuracy,precision encoders are used in aerospace systems requiring stable performance under challenging conditions.

How to Choose the Right Through Shaft Encoder?

When selecting a Through Shaft Encoder,consider the following factors:

Resolution Requirement

Higher resolution provides more accurate position measurement.Choose the appropriate counts per revolution(CPR)according to application requirements.

Output Signal Type

Select the output format compatible with the control system,such as incremental or absolute signals.

Shaft Size

Ensure the hollow shaft diameter matches the machine shaft for proper installation.

Environmental Conditions

For applications involving dust,vibration,or extreme temperatures,choose an encoder with suitable protection ratings.

Application Requirements

Consider speed range,accuracy,mounting method,and communication interface before purchase.

FAQ

1.What is a Through Shaft Encoder?

A Through Shaft Encoder is a rotary feedback device with a hollow shaft design that measures rotation angle,speed,and direction while allowing another shaft or component to pass through its center.

2.What is the difference between a Through Shaft Encoder and a Standard Rotary Encoder?

The main difference is the mounting structure.A standard rotary encoder usually requires a solid shaft connection,while a through shaft encoder allows direct mounting around an existing shaft.

3.What industries use Through Shaft Encoders?

Through shaft encoders are widely used in industrial automation,robotics,CNC machines,automotive manufacturing,aerospace equipment,and motion control systems.

4.Are Through Shaft Encoders suitable for harsh environments?

Yes.Magnetic through shaft encoders especially provide excellent resistance against dust,vibration,and temperature variations,making them suitable for demanding industrial applications.

5.Can Through Shaft Encoders be customized?

Yes.Manufacturers can customize shaft size,resolution,output signals,voltage,protection level,and mounting options based on specific application requirements.
