Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001
Model Number: USB-UD029J
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
More Details please find the below websties:
| Characteristics | Specification |
| Current Rating | 5A/contact terminal |
| Voltage Rating | 30V DC |
| Contact Resistance | 30MΩ |

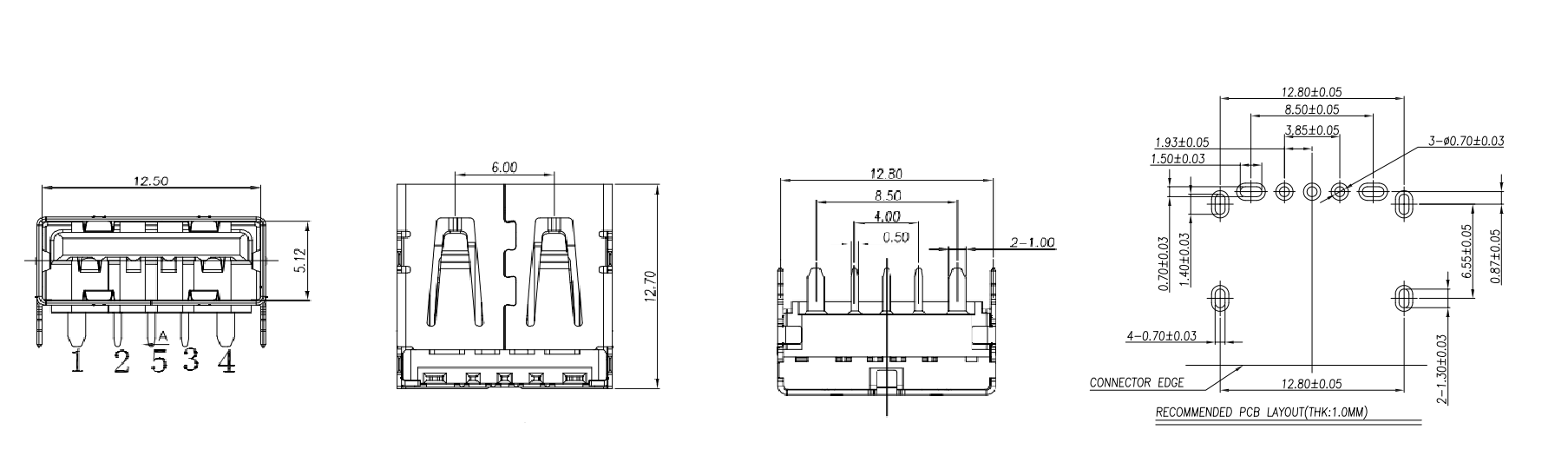

| Dimension | 12.70mm*12.50mm |
| Dielectric Withstabding Voltage | 100V DC |
| Insulation Resistance | 100MΩ min |
Tesla Gen3-style Charging Unit USB Connector's Product Operating Principle
The 5A capacity is achieved through dual parallel contact paths (IEC 60512-5-1 compliant), reducing resistance by 50% vs standard USB. Optional 90° or 180° mounting adapts to PCB space constraints, while nickel-plated shielding cuts EMI by 42dB at 150MHz. Wave-soldered terminals maintain ＜10mΩ impedance under 15G vibration (MIL-STD-202H tested).
Epilog Fusion-style Cutter USB Connector's Product Functions
--Power Revolution: 5A sustained load (3X standard USB 2.0) with ＜0.2V drop at 24VDC.
--Flexible Mounting: 90° & 180° DIP options for vertical/horizontal PCB layouts.
--Industrial Fortress: IP54 + UL94 V-0 + 1,000hr salt fog certification.
--Thermal Mastery: Integrated copper heatsink pads dissipate 3W heat without airflow.
--High-Volume Ready: Wave soldering achieves 40,000 units/hour production.
Smart-UPS-style system USB Connector's Product Applications
EV Onboard Chargers
Example: Deployed in Tesla Gen3-style charging units for 5A firmware update ports.
Industrial Laser Power Supplies
Example: Powers Epilog Fusion-style cutters with EMI-protected USB-B interfaces.
Data Center Backup PSUs
Example: Integrated into APC Smart-UPS-style systems for high-current diagnostic ports.
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
High effiency of production, shipped in 1 day after payment.
Q1: What packaging methods ensure component protection during shipping?
A: Components are secured in anti-static trays with moisture barrier bags and shock-absorbent foam, ensuring ESD and mechanical protection during transit.
Q2: Do you offer expedited production for urgent project timelines?
A: Expedited slots reduce lead time by 30% with a 50% deposit. Material availability must be confirmed prior to scheduling.
Q3: Are your connectors compatible with high-vacuum production environments?
A: Standard models are not vacuum-rated, but customized versions using low-outgassing materials can be developed for specialized applications.
Q4: How do you handle component obsolescence in long-term projects?
A: We guarantee a 10-year discontinuation notice and facilitate last-time-buy agreements to minimize disruptions in legacy production.
Q5: What is the average defect rate per production batch?
A: Defect rates remain below 0.02% due to automated optical inspection and real-time process control during manufacturing.
