USB 2.0 Type-A Male Connector - Solder Type Assembly丨USB-UG025Z

Product Details

Place of Origin: Dongguan China

Brand Name: KKG

Certification: CE / SGS / ISO9001

Model Number: USB-UG025Z

Payment & Shipping Terms

Minimum Order Quantity: 500pcs

Price: Negotiate

Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton

Delivery Time: 3-5 Days

Payment Terms: T/T, L/C, Western Union

More Details please find the below websties:

http://www.kkg.tw/

https://www.kkgpacking.com/

https://mao.ecer.com/test/illuminatedtactswitch.com/

Inquire Now

Product Details

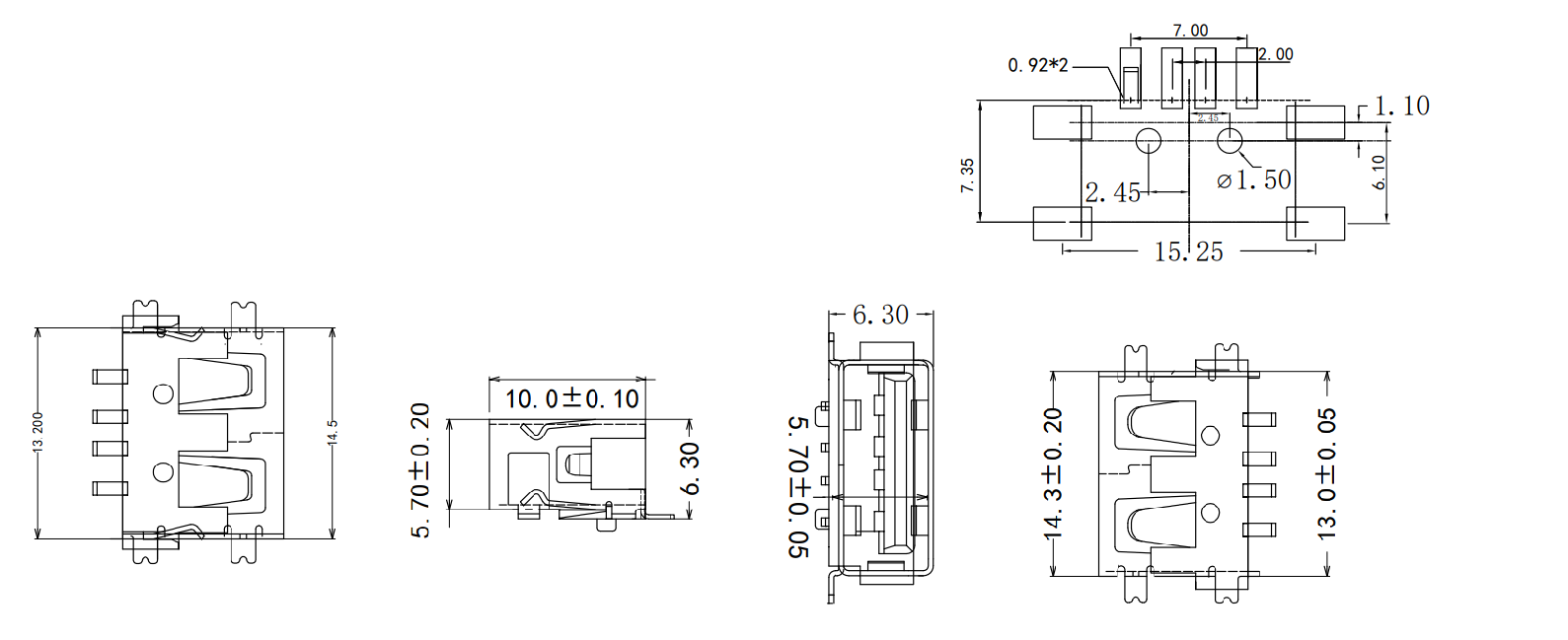

DIMENSIONS
Temperature Profile
Packaging Efficiency
FAQ

Characteristics	Specification
Current Rating	1.5A/contact terminal
Voltage Rating	30V DC
Contact Resistance	30MΩ
Dimension	10.00mm*14.30mm
Dielectric Withstabding Voltage	100V DC
Insulation Resistance	100MΩ min

Raspberry Pi 4 Model B USB Connector's Product Operating Principle

The male plug is designed to be soldered to a cable, with dedicated pins for VCC, D-, D+, and Ground connections.
When inserted into a female USB-A port, its contacts securely mate with the receptacle's pins, establishing a stable connection.
The assembled connector facilitates data synchronization and power transmission between the host device and a peripheral.

GMMK Pro USB Connector's Product Functions

Custom Cable Assembly: Allows for the creation of custom-length USB cables for specific applications and unique project needs.
Device Repair: Enables the replacement of damaged or broken USB-A male plugs on existing cables, extending equipment life.
Data & Power: Provides a standard 4-pin interface to carry both USB 2.0 data signals and 5V power over a single cable.
Secure Connection: Ensures a reliable physical and electrical connection, rated for a minimum of 1,500 insertion/removal cycles.

Pioneer DDJ-400 Controller USB Connector's Product Applications

Industrial Prototyping: Used by engineers to create custom-length data cables for connecting embedded systems, such as a Raspberry Pi 4 Model B, to industrial sensors.
Consumer Electronics (DIY): Ideal for hobbyists building or repairing custom mechanical keyboards, like a GMMK Pro, with a detachable USB-A cable.
Professional Audio: Integrated into custom cables for connecting DJ equipment; this USB a plug links a Pioneer DDJ-400 Controller to a laptop for live performance.

USB-UG025Z

KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!

Temperature

High effiency of production, shipped in 1 day after payment.

Packaging

Q1: What's the lead time of bulk order?
A: The lead time is normally 10-14 days. We will inform you lead time before order, and will confirm to you again after received payment.

Q2. What is the payment term?
A: For small quantity order, pls remit payment by PayPal. For bulk order, pls remit payment by T/T.

Q3. Can you open mold for teminal order or uncommon mold?
A: OK, we need time to discuss in details, such us the cost for open mold, and need to know the forecast, end product and lifespan.

Q4:What is your PCB/ PCBA service?
A: Our PCB / PCBA service is about Medical industry, Automobile, Energy, Measurements, Consumer Electronics.

Q5:What kind of files are required for quotation?
A: For PCB quotation, please provide the Gerber data / files and indication of related technical requirements as well as any special.
