E-type USB Connector

Product Details

Place of Origin: Dongguan China

Brand Name: KKG

Certification: CE / SGS / ISO9001

Model Number: USB-UG042J

Payment & Shipping Terms

Minimum Order Quantity: 500pcs

Price: Negotiate

Packaging Details: Plastic bag+ inner box bubble+ inner box in Carton

Delivery Time: 3-5 Days

Payment Terms: T/T, L/C, Western Union

More Details please find the below websties:

http://www.kkg.tw/

https://www.kkgpacking.com/

https://mao.ecer.com/test/illuminatedtactswitch.com/

Inquire Now

Product Details

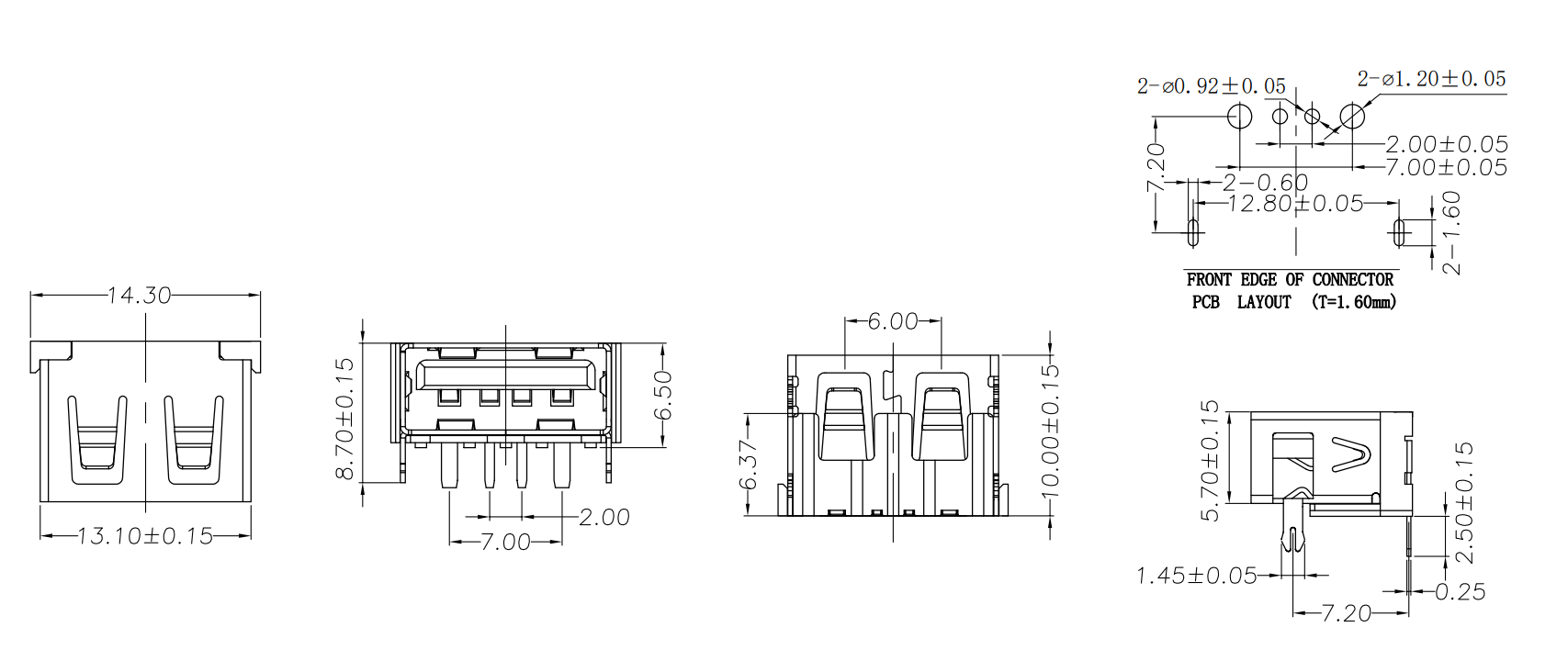

DIMENSIONS
Temperature Profile
Packaging Efficiency
FAQ

Characteristics	Specification
Current Rating	1.5A/contact terminal
Voltage Rating	30V DC
Contact Resistance	30MΩ
Dimension	10.00mm*13.10mm
Dielectric Withstabding Voltage	100V DC
Insulation Resistance	100MΩ min

Bosch ME17-style ECU USB Connector's Product Operating Principle

The E-type pin array optimizes component clearance, allowing 0.5mm trace spacing in 8-layer PCBs. Nickel-plated contacts with dual wiping surfaces ensure<20mω 10="" impedance="" after="">

Fanuc 0i-style Control Panel USB Connector's Product Functions

--Asymmetrical Advantage: E-shape pinout bypasses adjacent capacitors/resistors.

--USB 2.0 Hi-Speed+: 480Mbps + BC1.2 charging protocol compliance.

--Industrial Fortress: MIL-STD-202H vibration & 720hr salt fog certified.

--Extreme Environment: -40°C~125°C operation with 85% humidity tolerance.

--Rapid Production: Wave soldering achieves 28,000 units/hour throughput.

Landis+Gyr E350-style Meter Device USB Connector's Product Applications

Vehicle Engine Control Units

Example: Integrated into Bosch ME17-style ECUs for OBD-II diagnostic ports.

CNC Machine Interfaces

Example: Deployed in Fanuc 0i-style control panels with high-vibration immunity.

Smart Energy Gateways

Example: Powers Landis+Gyr E350-style meters for firmware update interfaces.

USB-UG042J

KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!

Temperature

High effiency of production, shipped in 1 day after payment.

Packaging

Q1: May I have free samples?
A: Sure, but we need to confirm the product details before shipment. Besides, it is better to provide the AI format artwork to us.

Q2: Do you provide anti-static protection for sensitive electronics integration?

A:Yes, all connectors include ESD shielding (15kV minimum) to protect against static discharge during handling or operation.

Q3: What are the lead time and packaging options for bulk orders?

A: Standard Orders: 15-20 days, packed in anti-static tape and reel.

Custom Requests: 25-30 days, with vacuum-sealed moisture barrier bags for humidity-sensitive environments.

Q4: How do your connectors handle high-temperature soldering processes?

A: The nylon housing withstands reflow soldering up to 260°C for 10 seconds. Precise pin alignment prevents warping during PCB assembly.

Q5:How do you package the goods?

A: We will package the swtiches in reels or in anti static bag with covering air bubble films. Besides, they will be putting into a inner box and then into a outer carton.
