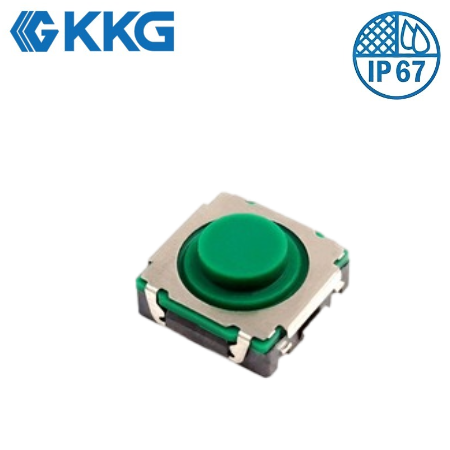

Car Accessory Waterproof Tactile Switch

This Tact Switch serves as a direct replacement for the ALPS SKSTACE010, specifically designed for applications requiring high reliability and compact installation.

IP65 Tact Switch's Features

Dimensions: 8.5×8.5mm standard SMD package, fully compatible with SKSTACE010 for direct replacement without PCB layout modifications.

Operating Feel: Approx. 0.25mm key travel with actuation force in the 160±50gf range. Provides crisp feedback and consistent tactile response, ideal for high-frequency operations.

Electrical Performance: Rated at 50mA current and 12V DC voltage. Contact resistance ≤50mΩ, insulation resistance ≥100MΩ, meeting fundamental requirements for consumer electronics and industrial control applications.

Mechanical Life: Withstands up to 1 million presses while maintaining stable performance under vibration and shock, suitable for automotive dashboards, home appliance control panels, and similar applications.

Waterproof Tact Switch's Structure & Waterproof Design

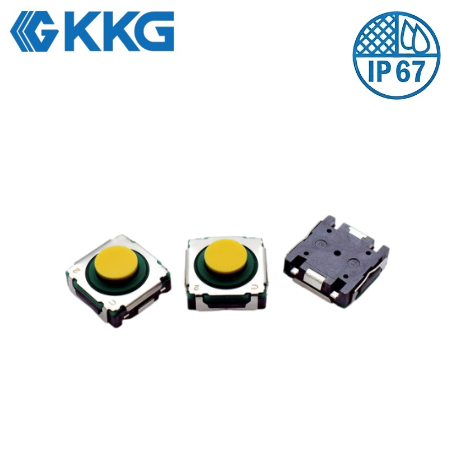

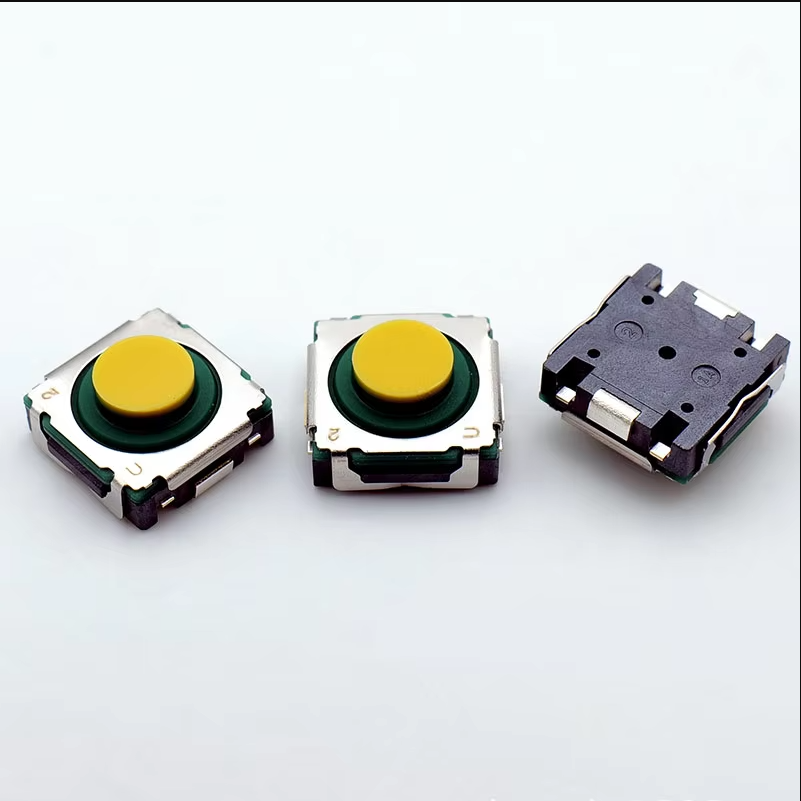

Top: Yellow silicone button cap provides sealing and cushioning; green rubber ring forms the primary waterproof/dustproof barrier. Select versions support IP65 protection rating.

Core: Internal gold-plated metal spring leaf deforms upon press to complete the circuit, automatically resetting to break the connection when released.

Bottom: Metal pad-style pins enable direct reflow soldering onto PCBs, ensuring secure mounting and high resistance to mechanical stress.

 Automotive Tact Switch's Compatible Applications

This switch perfectly replaces the original SKSTACE010 in applications including:

Automotive Electronics: Steering wheel buttons, window control modules

Smart Home: Remote controls, smart panels

Industrial Equipment: Handheld terminals, instrumentation buttons
