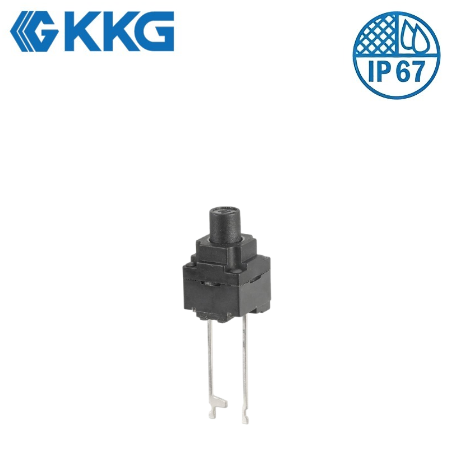

2P Waterproof Tactile Switch

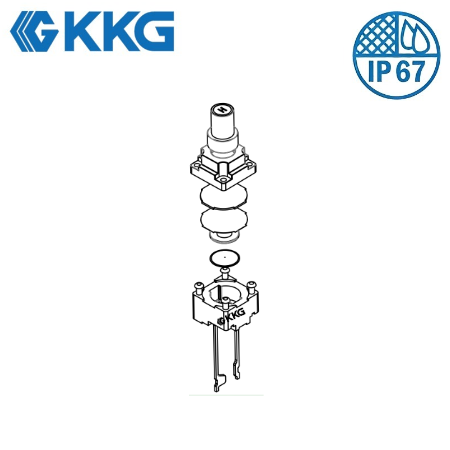

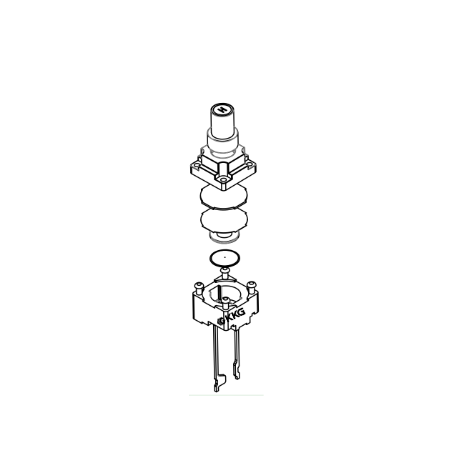

2P 8*8MM Waterproof Tactile Switch Product Structure and Materials

Button Cap

Material: Silicone / Nitrile Rubber (NBR)

Sealing Gasket

Material: Fluorocarbon Rubber (FKM) or Silicone

Positioning Sleeve

Material: PBT Engineering Plastic (Glass Fiber Reinforced)

Function: Fixes the button cap travel, prevents displacement during pressing, enhances structural stability.

Metal Spring Contact (Contact)

Material: Beryllium Copper (Gold-plated / Silver-plated)

Insulating Base

Material: LCP (Liquid Crystal Polymer) or High-Temperature PBT

Pins (2P Terminals)

Material: Brass (Tin-plated / Gold-plated)

Metal Housing / Retaining Frame

Material: Stainless Steel or Nickel-Plated Phosphor Bronze

The development of this switch primarily stems from the industry's urgent demand for highly protective

1.Essential for Outdoor and Humid Environments

Traditional tactile switches lack waterproofing, making them prone to failure in humid/dusty settings like car washes, outdoor lighting, and power tools. This necessitated the creation of waterproof switches with IP67 protection.

2.Miniaturization and Standardization Trends

The 8×8mm form factor is the mainstream installation size for consumer electronics and industrial equipment. The 2-pin (2P) design simplifies wiring, meeting compact space requirements while reducing production and maintenance costs.

3.Import Substitution and Cost Optimization

Overseas brands offer waterproof switches at high prices and long lead times. This domestically produced, cost-effective solution directly replaces comparable imported products, helping enterprises reduce supply chain risks and costs.

4.Reliability Requirements for Automotive Electronics

Interior/exterior vehicle buttons (e.g., wiper/window controls) must operate reliably under vibration and extreme temperature conditions. The IP67 waterproof rating and high mechanical endurance (over 1 million cycles) are engineered to meet these demanding specifications.

 Automotive Tact Switch's Compatible Applications

This 2P 8×8mm waterproof tact switch, with its compact size and high protection rating, is widely used in:

Automotive Electronics: Steering wheel buttons, in-car chargers, window lift switches, trunk openers

Outdoor Equipment: Flashlights, headlamps, outdoor Bluetooth speakers, solar streetlight controllers

Smart Home: Smart door locks, bathroom switch panels, robot vacuum buttons

Industrial & Security: Handheld barcode scanners, security cameras, access control systems, power tools (e.g., drills, wrenches)

Medical devices: Portable diagnostic instruments, infusion pumps, pulse oximeters, and other waterproof/disinfectable equipment

Consumer electronics: Waterproof Bluetooth earbuds, action cameras, game controllers
