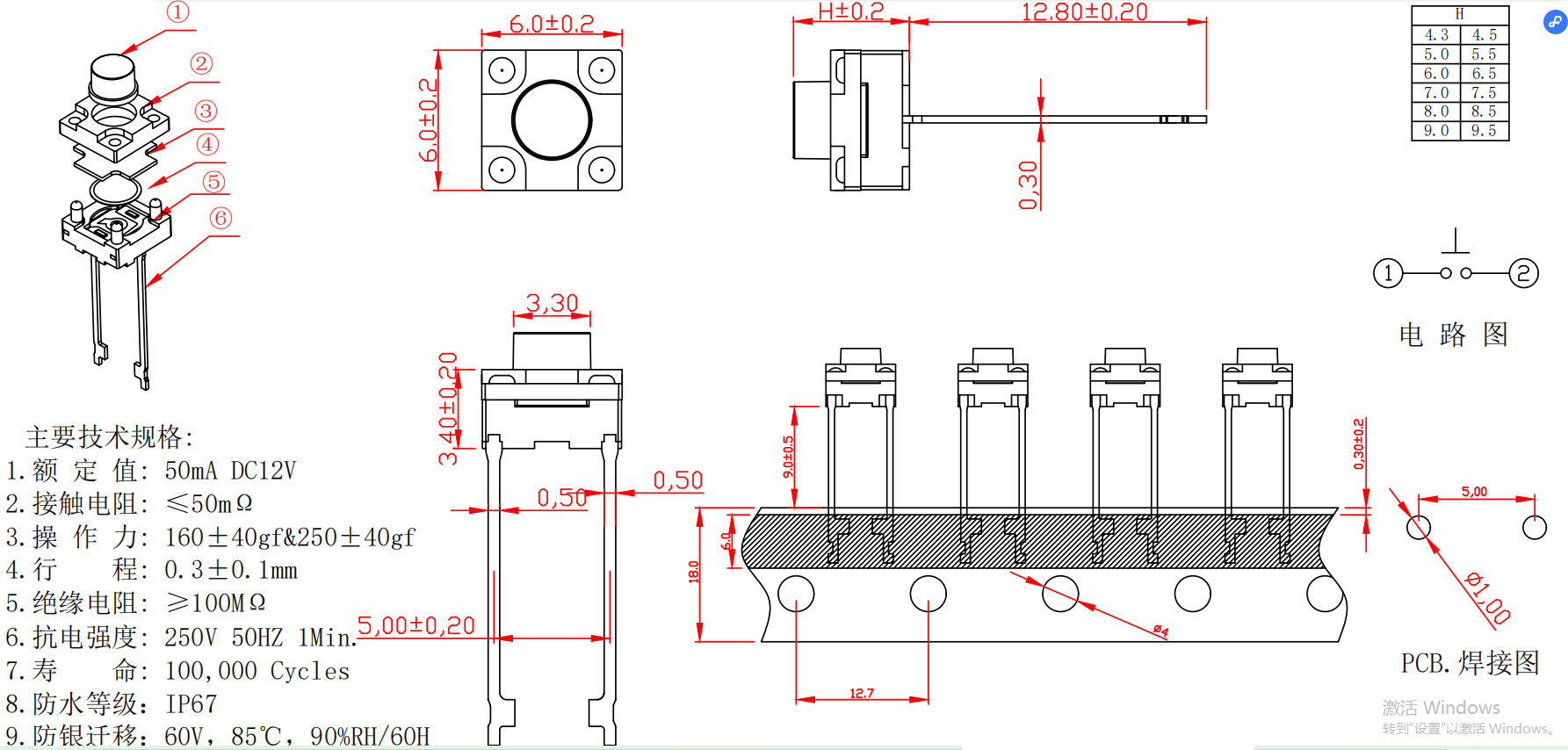

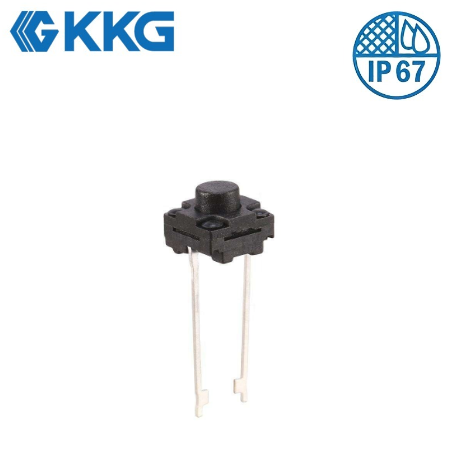

2P Waterproof Tactile Switch 6*6mm

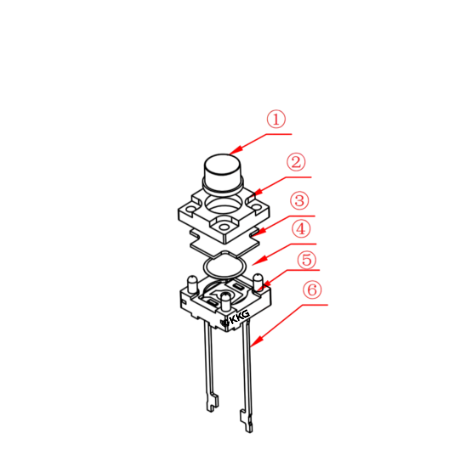

Product Structure and Materials of 6*6mm Waterproof Tactile Switch

① Button Cap

Material: Silicone / Nitrile Rubber

Function: Directly absorbs pressing force, provides tactile feedback, and serves as the primary waterproof and dustproof barrier.

② Sealing Gasket

Material: Fluorocarbon Rubber (FKM) / Silicone

Function: Forms an IP67-rated seal through interference fit with the button cap and positioning frame, preventing liquid ingress.

③ Positioning Bracket

Material: Glass-fibre reinforced PBT engineering plastic

Function: Fixes button travel, prevents press deviation, and enhances overall structural rigidity.

④ Waterproof Membrane / Isolation Sheet

Material: PET/PTFE composite film

Function: Further isolates moisture vapour without affecting pressure transmission, assisting in elevated protection ratings.

⑤ Core Functional AssemblyComprising a gold-plated beryllium copper conductive spring leaf and LCP insulating base. Deformation of the spring leaf during actuation establishes contact, with automatic reset upon release.

⑥ 2P Pin Terminal

Material: Tin-plated / Gold-plated brass

Function: Connects to the PCB via soldering to transmit electrical signals. The plating enhances oxidation resistance and conductivity

The Application of 2P ip67 Tact Switch

This 6x6 waterproof tactile switch, featuring an ultra-compact size and IP67 waterproof rating, is widely used in scenarios demanding strict space and protection requirements:

Wearables: Function buttons for smartwatches and fitness bands; pairing buttons for Bluetooth earbuds.

Smart Home: Emergency buttons for smart door locks; bathroom switch panels; buttons for small sensors.

Medical devices: Thermometers, blood glucose monitors, portable nebulizers, and other equipment requiring waterproofing and disinfection.

Outdoor electronics: Power buttons for flashlights, headlamps, and Bluetooth speakers; solar streetlight controllers.

Automotive electronics: In-vehicle sensors, rearview mirror adjustment buttons, trunk emergency switches.

Industrial instruments: Function buttons for handheld barcode scanners and portable testing devices.
