A Toggle Switch is one of the most common types of electrical SWITCHes used to control the flow of electricity in a circuit.It operates through a lever or handle that can be moved between different positions,typically turning a device ON or OFF.Thanks to its simple design,durability,and reliable performance,toggle switches are widely used in industrial equipment,automotive systems,household appliances,control panels,and electronic devices.
Whether you're designing an electrical system or simply curious about how switches work,understanding toggle switches can help you choose the right switching solution for your application.
What Is a Toggle Switch?

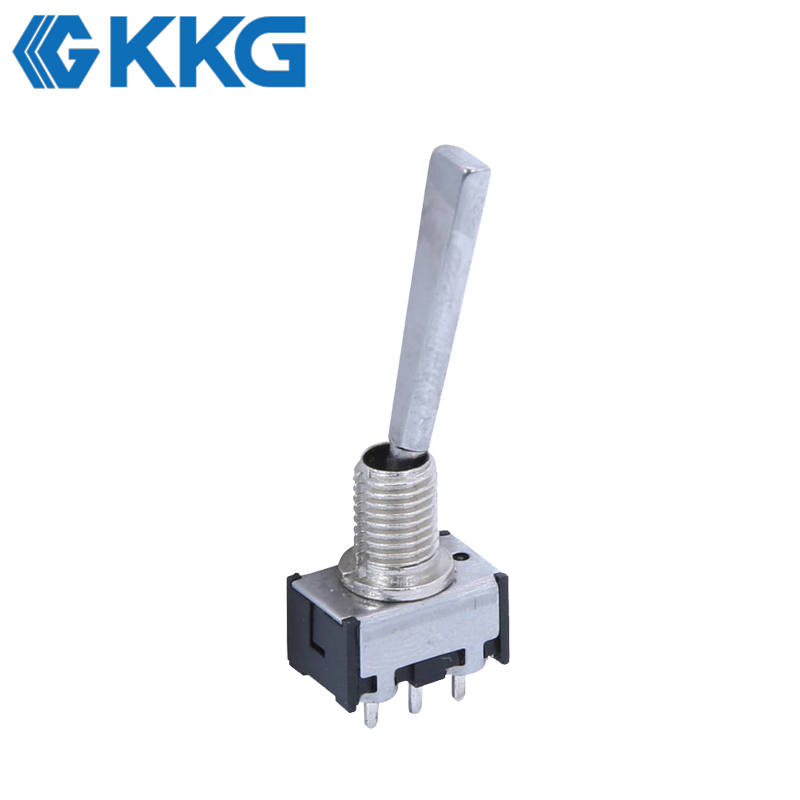

A Toggle Switch is a manually operated electromechanical switch that uses a pivoting lever,known as a toggle,to open or close an electrical circuit.
When the lever is moved to one position,electrical contacts inside the switch connect,allowing current to flow.When moved to another position,the contacts separate,interrupting the circuit and stopping the flow of electricity.
Because of their tactile operation and clear visual indication of status,toggle switches remain a popular choice across many industries.
How Does a Toggle Switch Work?
The working principle of a toggle switch is relatively simple.
Inside the switch housing are conductive metal contacts connected to electrical terminals.When the toggle lever is moved:
ON Position
The internal contacts touch each other,creating a closed circuit that allows electrical current to pass through.
OFF Position
The contacts separate,creating an open circuit that blocks current flow.
Some toggle switches include multiple contact arrangements that can redirect current between different circuits rather than simply turning power on and off.
Basic Operating Process
User moves the toggle lever.
Internal mechanism changes contact position.
Circuit is either opened or closed.
Electrical device responds accordingly.
This straightforward mechanism provides reliable switching action over thousands of operating cycles.
Main Components of a Toggle Switch
A typical toggle switch consists of several key parts:
Toggle Lever
The external handle used to operate the switch.
Housing
Protects internal components from dust,moisture,and mechanical damage.
Contacts
Conductive metal pieces that establish or interrupt electrical connections.
Terminals
Connection points for wires and electrical circuits.
Actuator Mechanism
Transfers movement from the toggle lever to the internal contacts.
Spring Mechanism
Provides positive switching action and maintains stable contact positions.
Types of Toggle Switches
Toggle switches are available in various configurations depending on circuit requirements.
SPST(Single Pole Single Throw)
The simplest configuration.
One input
One output
ON/OFF operation
Commonly used for basic power control.
SPDT(Single Pole Double Throw)
Allows one circuit to connect to one of two outputs.
Applications include:
Signal selection
Direction control
Switching between devices
DPST(Double Pole Single Throw)
Controls two separate circuits simultaneously with a single switch.
Commonly used in industrial equipment and higher-power applications.
DPDT(Double Pole Double Throw)
Can control two circuits and switch each between two outputs.
Often used in:
Motor reversing
Automation systems
Advanced control panels
Toggle Switch Position Types
ON-OFF
The most common configuration.
One ON position
One OFF position
ON-ON
Switches between two active circuits without an OFF position.
ON-OFF-ON
Provides two active positions with a center OFF position.
Momentary Toggle Switch
Returns automatically to its original position when released.
Often used for:
Horns
Start buttons
Temporary control functions
Advantages of Toggle Switches
Simple Operation
Users can easily determine switch status at a glance.
High Reliability
Mechanical construction offers long service life.
Durable Design
Suitable for demanding industrial environments.
Wide Voltage Compatibility
Available for low-voltage electronics and high-power electrical systems.
Cost-Effective
Provides reliable performance at a relatively low cost.
Common Applications of Toggle Switches
Industrial Control Panels
Toggle switches are widely used for machine control,system activation,and operational settings.
Automotive Systems
Common applications include:
Auxiliary lighting
Winches
Battery disconnect systems
Dashboard controls
Household Appliances
Used in:
Fans
Power tools
Audio equipment
Small appliances
Marine Equipment
Waterproof toggle switches are frequently installed on boats and marine control systems.
Aerospace and Aviation
Aircraft cockpits often utilize heavy-duty toggle switches due to their reliability and ease of operation.
Electronic Devices
Laboratory equipment,testing instruments,and DIY electronics projects commonly use miniature toggle switches.
Toggle Switch vs Rocker Switch
| Feature | Toggle Switch | Rocker Switch |
|---|---|---|
| Operation | Lever action | Rocking actuator |
| Visual Status | Very clear | Clear |
| Durability | Excellent | Excellent |
| Industrial Use | Very common | Common |
| Space Requirement | Slightly larger | More compact |
| Retro Appearance | Yes | No |
Toggle switches are often preferred where operators need precise manual control and clear visual feedback.
Toggle Switch vs Push Button Switch
| Feature | Toggle Switch | Push Button Switch |
|---|---|---|
| Maintained Position | Yes | Usually No |
| Visual Indication | Excellent | Moderate |
| Operation Style | Lever | Button |
| Continuous Control | Ideal | Limited |
| Industrial Applications | Extensive | Extensive |
Push button switches are often used for momentary actions,while toggle switches are better for maintaining a selected state.
How to Choose the Right Toggle Switch
When selecting a toggle switch,consider:
Current rating
Voltage rating
Number of poles and throws
Mounting style
Environmental protection level
Contact material
Operating temperature range
Electrical life expectancy
Choosing the correct specifications ensures safe and reliable operation.
FAQ
What is the purpose of a toggle switch?
A toggle switch is used to open,close,or redirect an electrical circuit by manually moving a lever between different positions.
Are toggle switches durable?
Yes.Many industrial-grade toggle switches are designed to withstand tens of thousands of operating cycles.
What does SPDT mean on a toggle switch?
SPDT stands for Single Pole Double Throw,meaning one input can be switched between two output circuits.
Can toggle switches be waterproof?
Yes.Many manufacturers offer sealed and waterproof toggle switches for marine,automotive,and outdoor applications.
Where are toggle switches commonly used?
They are commonly found in industrial machinery,vehicles,boats,aircraft,electronic equipment,and household appliances.
